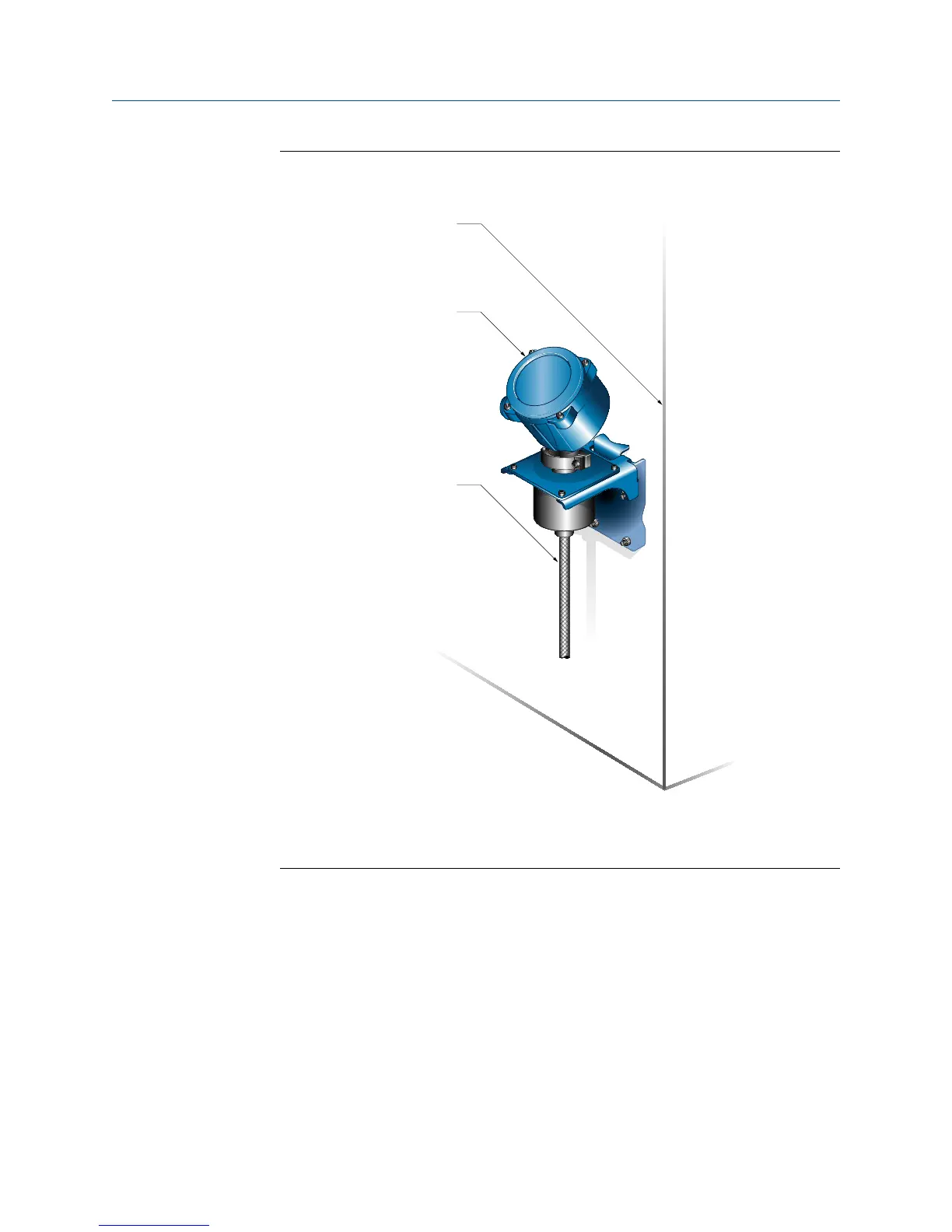

Wall-mount componentsFigure 2-7:
A
B
C
A. Wall or flat surface
B. Electronics (enhanced core processor shown)
C. Flexible conduit
• For mounting to an instrument pole, use a 2-inch U-bolt pipe kit to secure the
mounting bracket.
