1 Planning
Topics covered in this chapter:
Component identification
Installation checklist
Power requirements

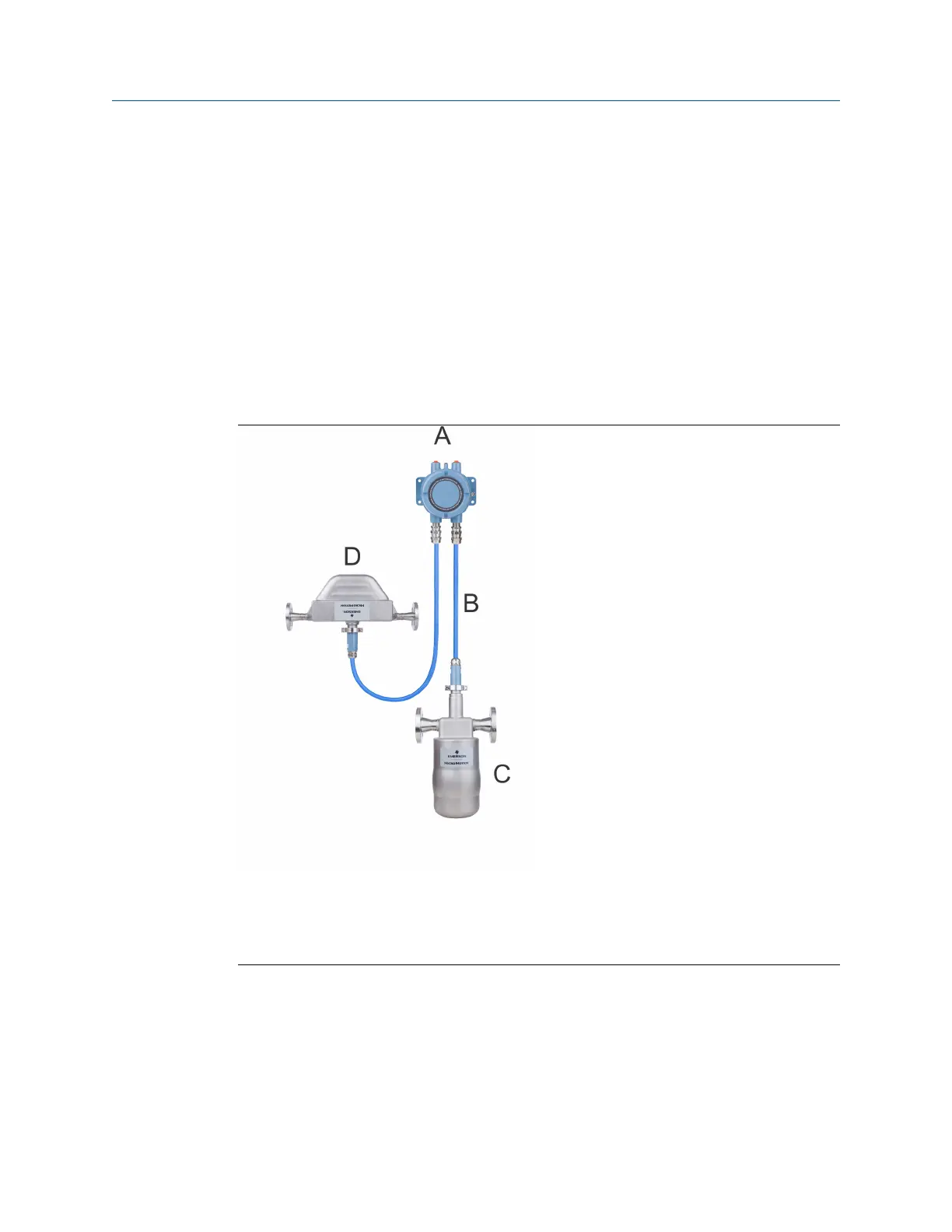

1.1 Component identification
A. Dual core processor
B. 9-wire cable
C. Model LNGM10 for filling measurement
D. Model LNGS06 for returning measurement
1.2
Installation checklist
Make sure that the hazardous area specified on the approval tag is suitable for the
environment in which the LNG meters will be installed.
Planning
Quick Start Guide 1
