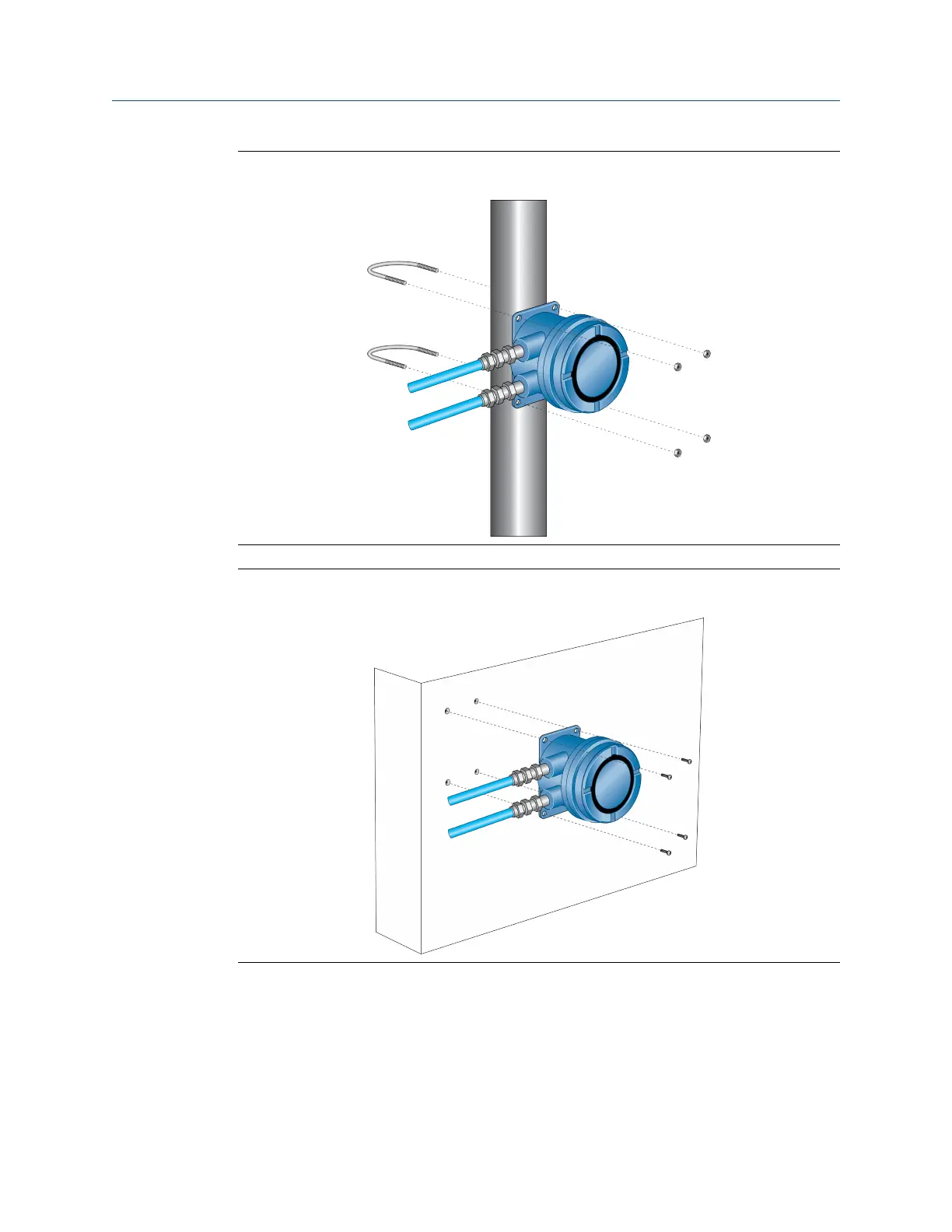

Dual core processor: pipe mountFigure 2-1:
Dual core processor: wall mountFigure 2-2:
2.3 Mount the enhanced core processor with MVD
Direct Connect I.S. Barrier (option 2)
1. Mount the enhanced core processor on either a pipe or a wall.
Mounting
Quick Start Guide 5
