Emerson Micro Motion Quick Start Guide

3.2.2 Wire the dual core processor power supply
Prerequisites
Prepare and install the cable according to the instructions in the Micro Motion Liquified
Natural Gas Meter Installation Guide.
Procedure
Connect the power supply wires to the positive (+) and negative (–) terminals.
Terminate the positive (line) wire on the positive (+) red terminal and the return (neutral)
wire on the negative (–) black terminal.

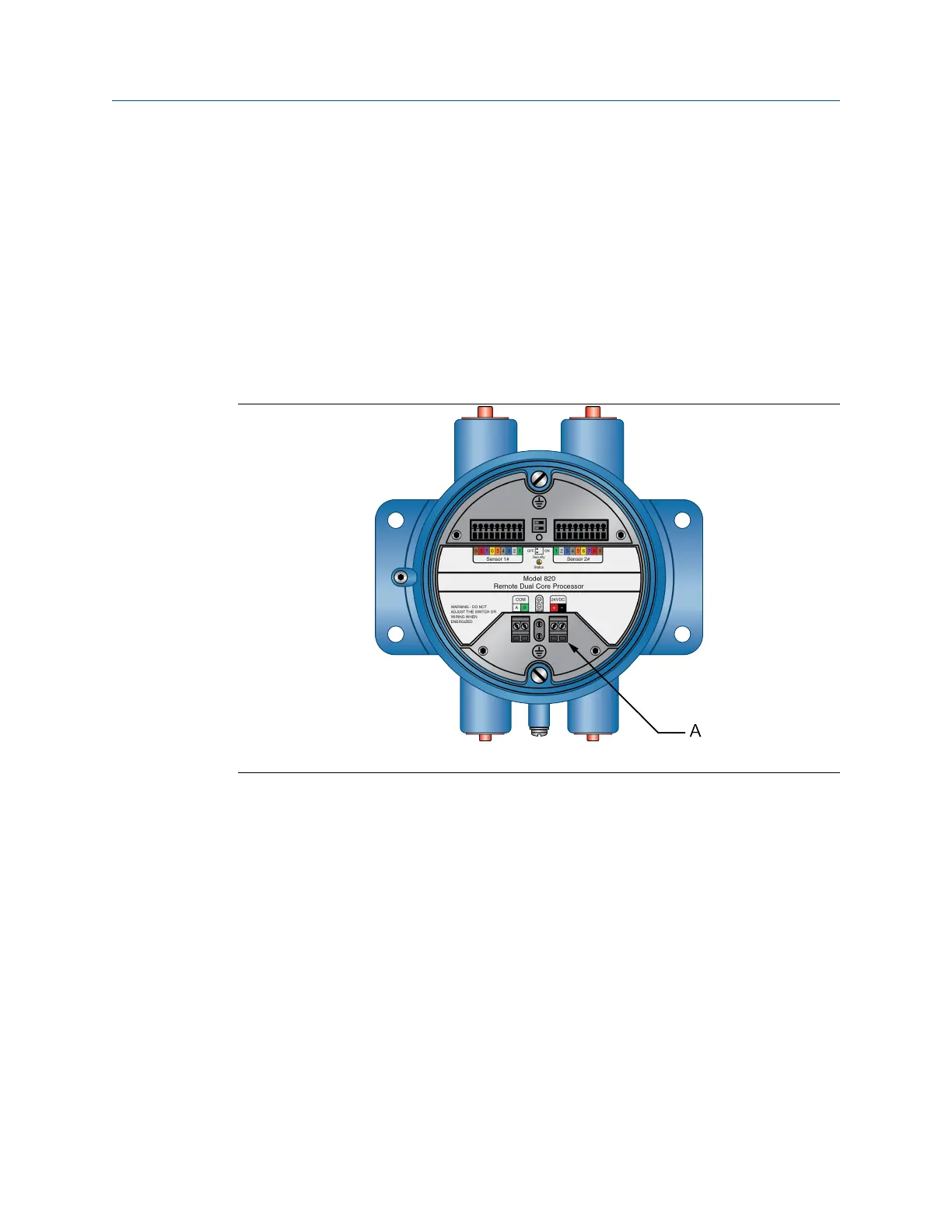

A. Power supply
3.2.3
Wire the dual core processor outputs
Prerequisites
Prepare and install the cable according to the instructions in the Micro Motion Liquified
Natural Gas Meter Installation Guide.
Procedure
Connect the RS-485 wires to the white RS485A and green RS485B connectors.
Wiring
Quick Start Guide 15

Emerson Micro Motion Specifications

General

Category	Measuring Instruments
Manufacturer	Emerson
Brand	Micro Motion
Type	Coriolis Flow Meter
Output	4-20 mA, HART, Foundation Fieldbus, Profibus, Modbus
Power Supply	24 V DC
Material	Stainless Steel, Hastelloy
Process Connection	Flanged, Threaded
Certifications	ATEX, IECEx, CSA, SIL
Pressure Rating	Varies by model; up to 10, 000 psi (690 bar)
Temperature Range	Varies by model; -400 to 750°F (-240 to 400°C)
