5. How to Hang Your Ceiling Fan (Continued)

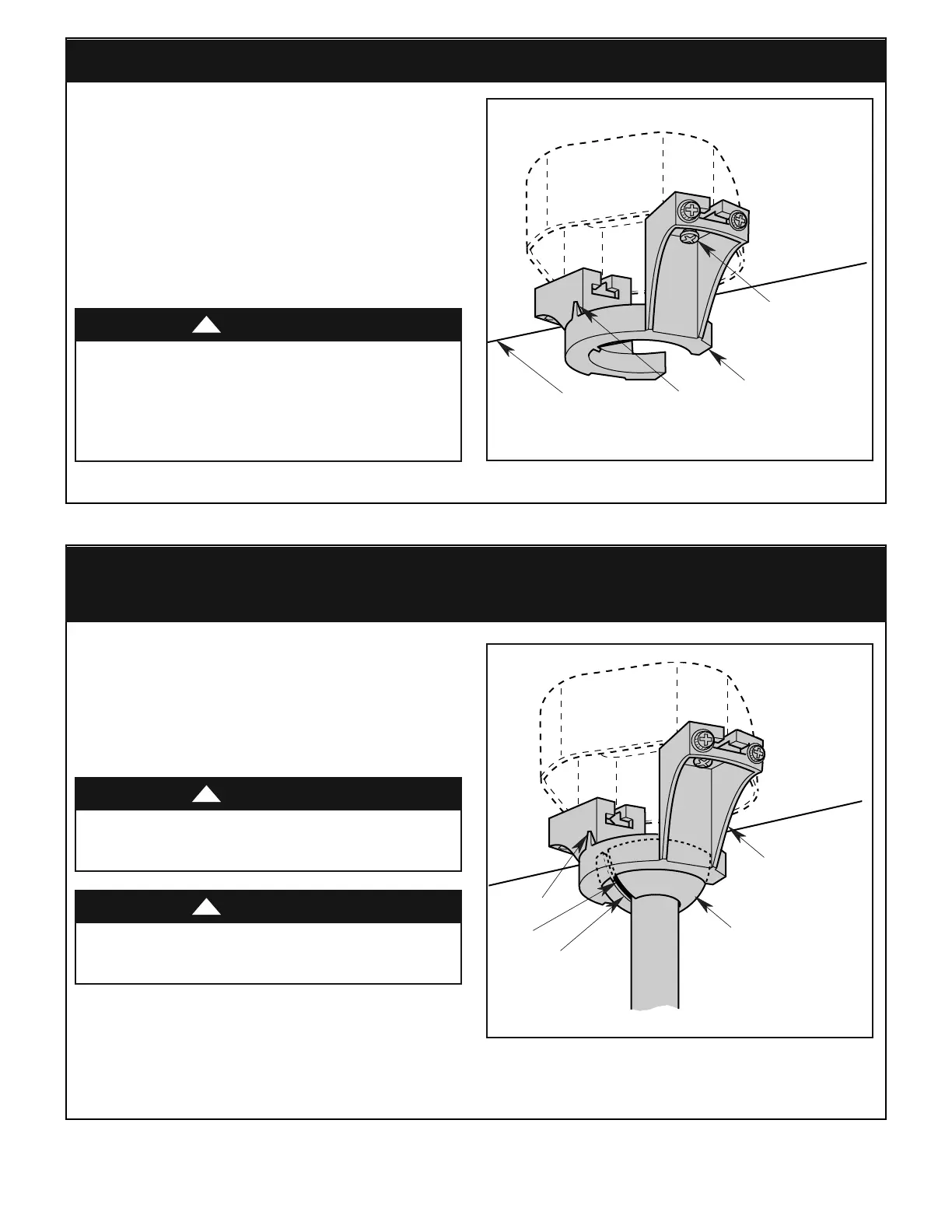

HANGER BRACKET
HOOK
SECURELY
TIGHTEN
SCREWS
(one on each side)
CEILING
Figure 13
5.2
NOTE: The hanger bracket must be mounted flush
with the ceiling in order for the ceiling cover to
i
nstall properly. If necessary, use leveling washers
(not supplied) between the outlet box and the
hanger bracket.
Slide the hanger bracket onto the outlet box screws.
Center the bracket over the outlet box and then
securely tighten the screws (Figure 13).
Hanger bracket must seat firmly against outlet box. If
the outlet box is recessed, use leveling washers
between the hanger bracket and the outlet box until
the bracket is flush with the ceiling. If bracket and/or
outlet box are not securely attached, the fan could
wobble or fall.
WARNING
!
6. Hanging the Ceiling Fan
(Standard Method Using Hanger Ball/Downrod)
HANGER
BRACKET
HOOK
TAB
GROOVE
HANGER BALL
NOTE: CEILING COVER, SUPPLY
WIRES AND FAN WIRES OMITTED
FOR CLARITY.
Figure 14
6.1
Carefully lift the fan assembly and seat the hanger ball
in the hanger bracket (Figure 14).
The tab on the hanger bracket must seat in the groove
in the hanger ball.
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!
To avoid fire or shock, do not pinch wires between the
hanger ball/downrod assembly and hanger bracket.
WARNING
!
