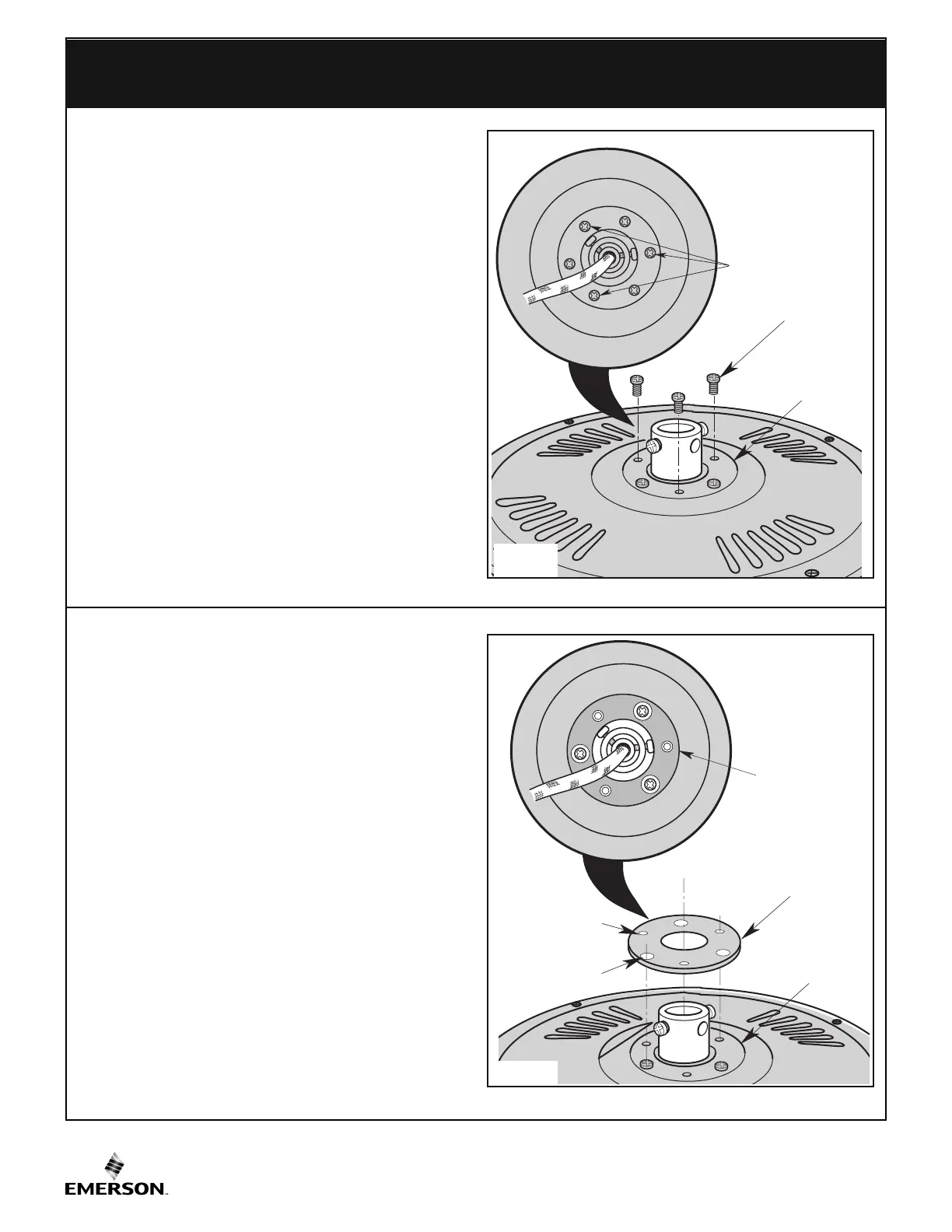

4. Installing the Ceiling Cover on the Fan Motor
Housing (For Close-to-the-Ceiling Mounting)
M
OTOR
HOUSING
SCREWS (3)
MOTOR
HOUSING
REMOVE SCREWS (3)
4.1
R
emove three motor housing screws (every other
screw as illustrated) from the top of the motor housing
(Figure 6).
Retain the three motor housing screws for future use.
Figure 6
RUBBER
GASKET
MOTOR
HOUSING
RUBBER GASKET
LARGE HOLES (3)
RUBBER GASKET
SMALL HOLES (3)
INSTALL
RUBBER
GASKET
4.2
Position the rubber gasket (supplied in parts bag) on
the motor housing.
The three small holes in the gasket should center over
the holes in the motor housing where the three screws
were previously removed (Figure 7).
The three large holes in the gasket should center over
the three screws still installed in the motor housing.
Figure 7
8
U.L. Model No.: 42-ANT & 52-ANT
