6 TO 9
INCHES
MOTOR
COUPLING
4.5
The fan comes with blue, black and white leads that are
42” long.
Measure up approximately 6 to 9-inches above the
motor coupling (Figure 10).
Cut off excess leads and strip back insulation 1/2-inch
from ends of leads.
Figure 10

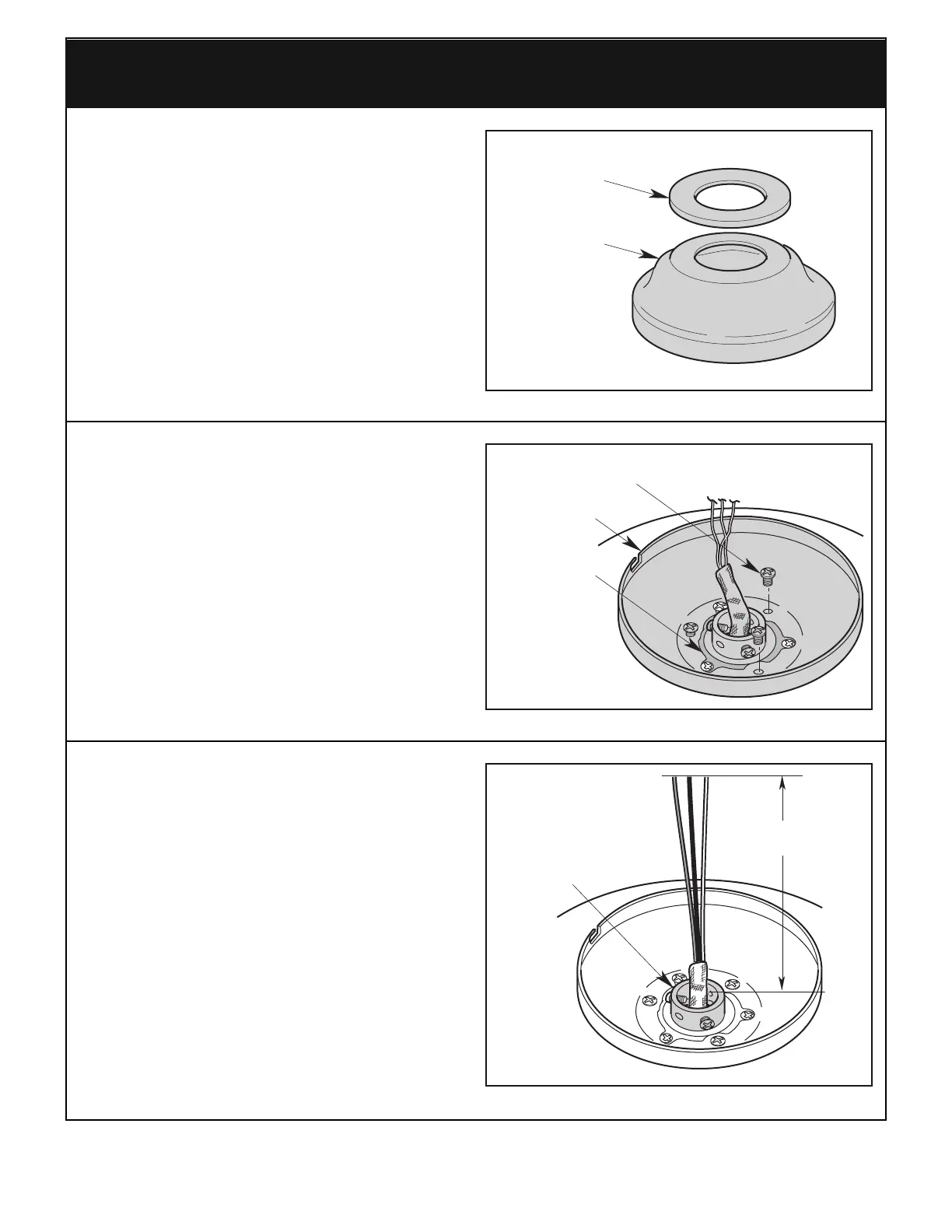

4. Installing the Ceiling Cover on the Fan Motor
Housing (For Close-to-the-Ceiling Mounting) (Continued)
DECORATIVE CAP
CEILING COVER
4.3
G
ently pry the decorative cap from the ceiling cover
(Figure 8).
RUBBER GASKET
SCREWS (3)
(Previously Removed)
CEILING COVER
4.4
Align the holes in the ceiling cover with the holes in the
motor housing and secure using the three screws
previously removed in Step 4.1 (Figure 9).
Figure 9
Figure 8
NOTE: For hanging instructions using Close-to-the-
Ceiling Method, See Page 12, Section 7. Hanging
the Ceiling Fan (Close-to-the-Ceiling Method with
Ceiling Cover Installed on the Motor Housing).
9
emersonfans.com
Please contact 1-800-654-3545 for further assistance
U.L. Model No.: 42-ANT & 52-ANT
To Next Page
