U.L. Model No.: 42-ANT & 52-ANT
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not operate
fan until blades are in place. Noise and fan damage
could result.
WARNING
!

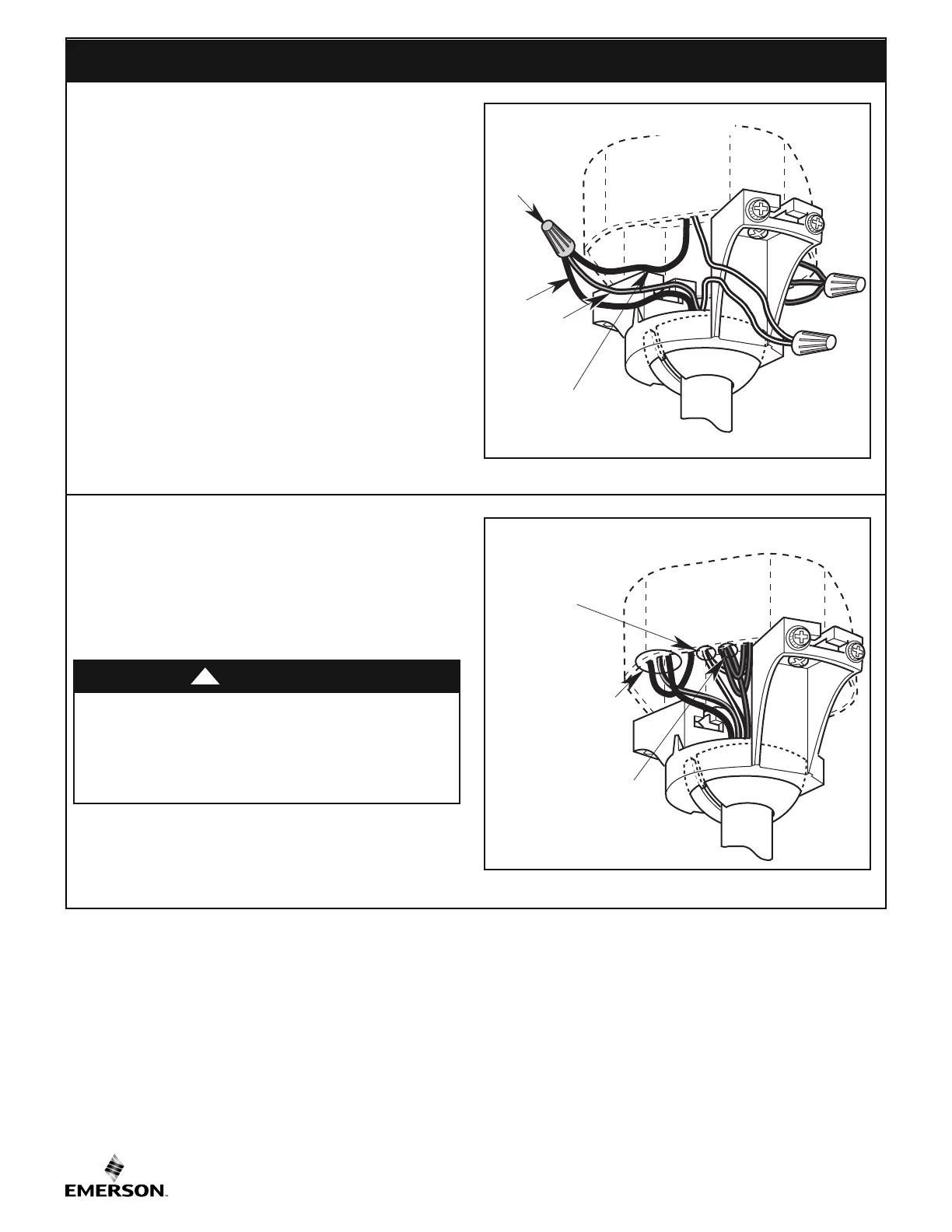

8. How to Wire Your Ceiling Fan (Continued)
LISTED WIRE
CONNECTOR
FAN MOTOR
BLACK FAN
WIRE
BLUE
FAN
WIRE
SUPPLY
BLACK
(HOT)
Figure 18
8.3
Securely connect the fan motor black wire and blue
wire to the supply black (hot) wire using wire connector
supplied (Figure 18).
TWO BLACK WIRES
AND ONE BLUE WIRE
WHITE WIRES
GREEN WIRES
Figure 19
8.4
After connections have been made, turn leads upward
and carefully push leads into the outlet box, with the
white and green leads on one side of the outlet box and
black leads on the other side of the outlet box
(Figure 19).
Hanger Ball/Downrod Assembly Shown
Hanger Ball/Downrod Assembly Shown
