Suggested Location of Sampling Points Functional Overview • 5
The user interface on the RLDS is the main
interface by which you program the unit,
acknowledge alarms, and observe conditions inside of
the mechanical room. Note that there are two
additional alarm relay contacts in the RLDS that can
be programmed to alarm with Leak, Spill, Evacuate,
Fault, or Monitor On.

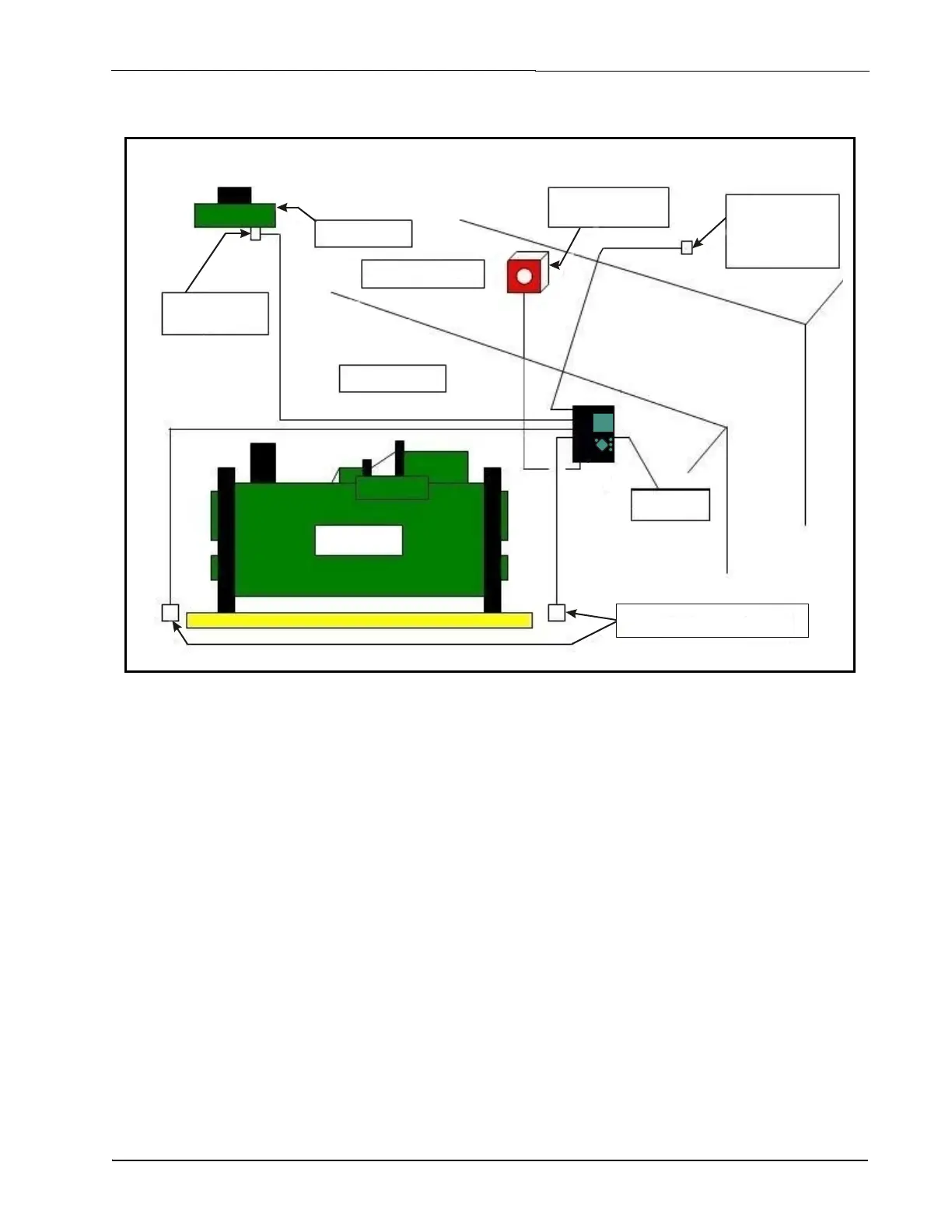

Figure 2-2 - RLDS Mechanical Room Placement
Sample Inlet Pickup Points
Chiller
Machine Room
Sample Inlet
Pickup Point
Exhaust Fan
Outside Hallway
Aux
Horn/Strobe
Fresh air purge
from area away
To Next Page
