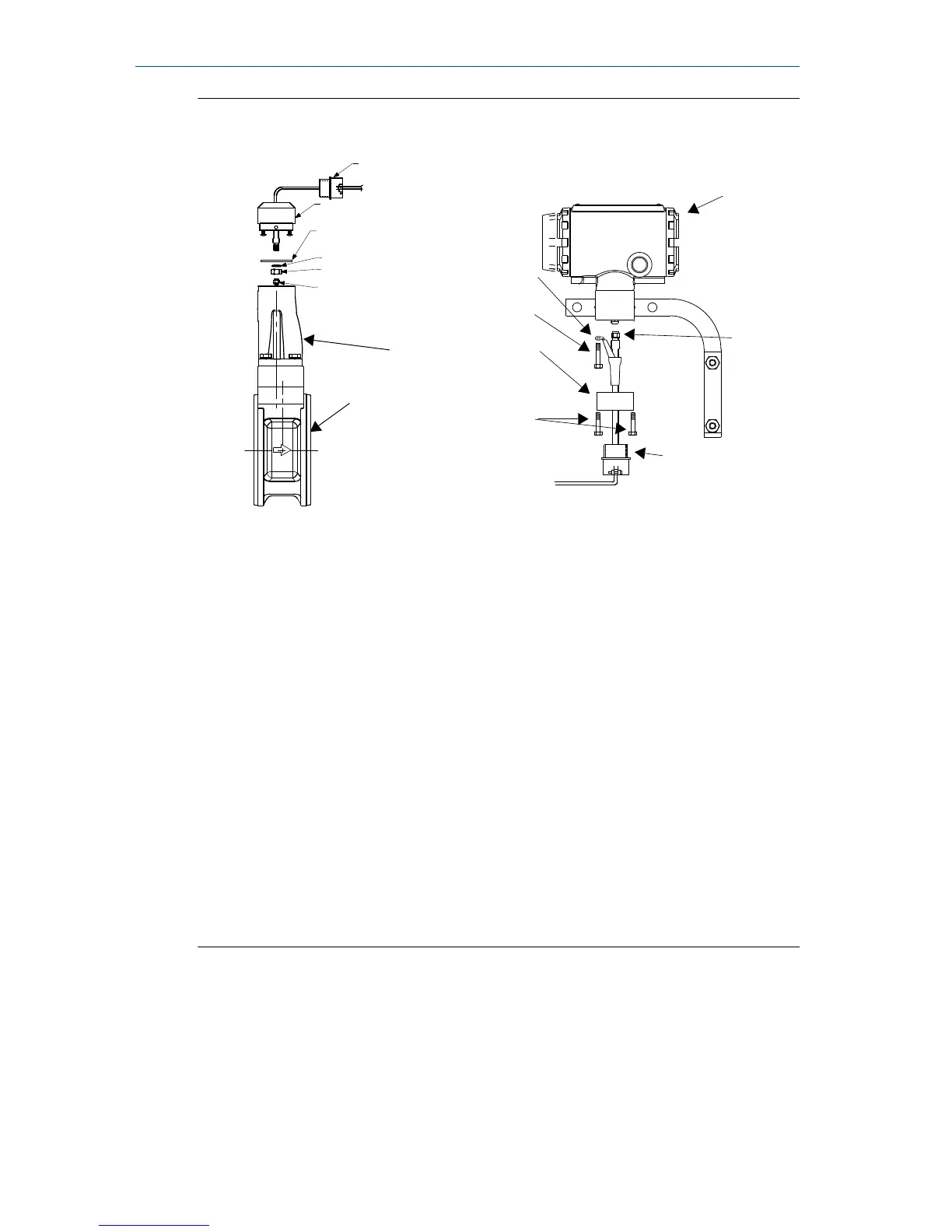

Figure 2-9: Remote electronics installation
A
B
C
E
D
F
G
H
I
J
K
L
M
N
O
P
A. 1/2 NPT conduit adapter or cable gland (supplied by customer)
B. Coaxial cable
C. Meter adapter
D. Union
E. Washer
F. Nut
G. Sensor cable nut
H. Support tube
I. Meter body
J. Electronics housing
K. Coaxial cable nut
L. Conduit adapter (optional-supplied by customer)
M. Housing adapter screws
N. Housing adapter
O. Housing base screw
P. Ground connection
Procedure
1. If you plan to run the coaxial cable in conduit, carefully cut the conduit
to the desired length to provide for proper assembly at the housing. A
junction box may be placed in the conduit run to provide a space for
extra coaxial cable length.
