2.1 Mount the flowmeter
Design process piping so the meter body will remain full, with no entrapped
air. The vortex flowmeter can be installed in any orientation without affecting
accuracy. However, the following are guidelines for certain installations.
2.1.1 Vertical mounting
If the vortex flowmeter will be installed in a vertical orientation:
• Install upward or downward flow for gas or steam.
• Install upward flow for liquids.

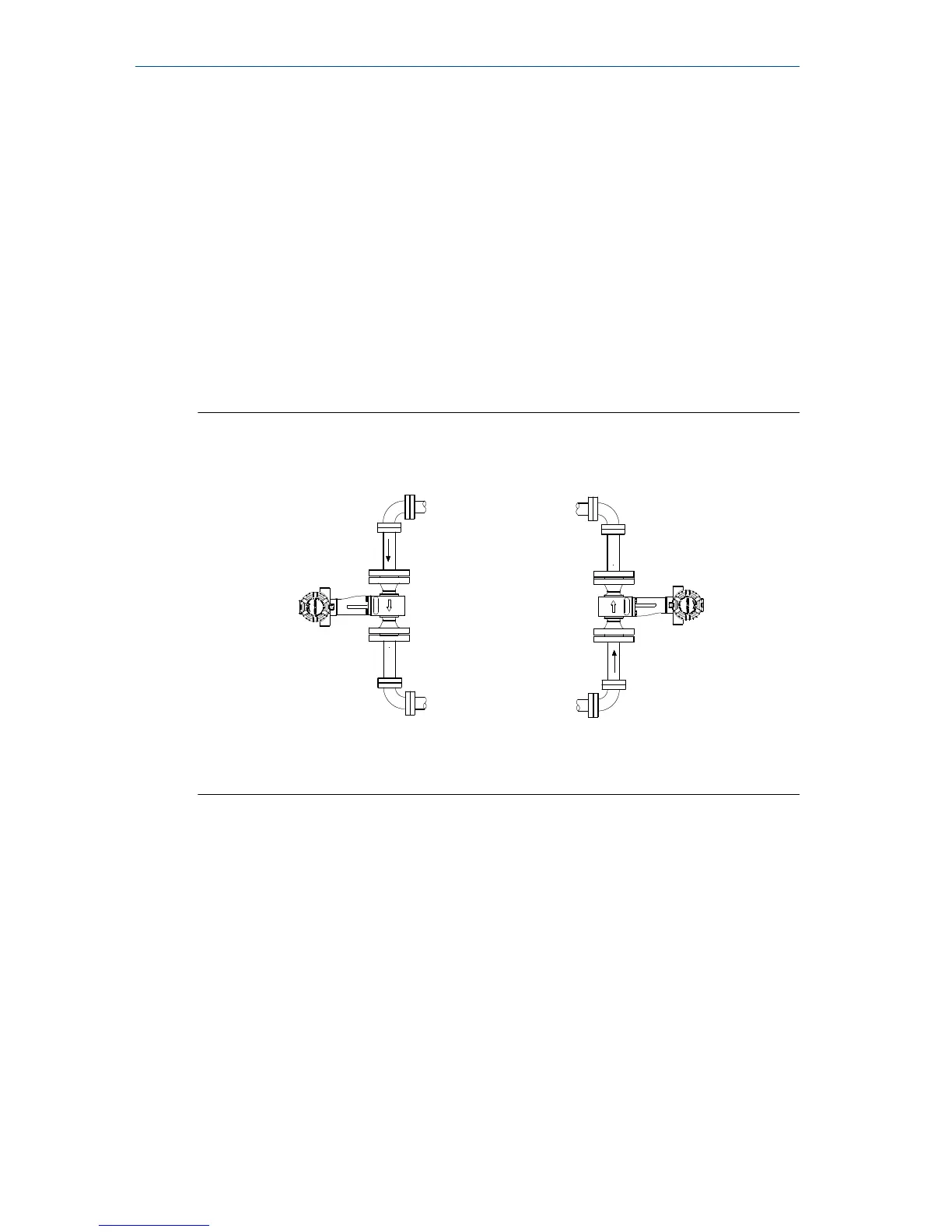

Figure 2-1: Vertical installation
BA
A. Gas flow
B. Liquid or gas flow
