Standard Temperature device in Figure 3-3 and for the High
Temperature device in Figure 3-4.
3.2.1 Standard temperature Rosemount SAM42 Acoustic Particle
Monitor location
Procedure
To achieve best sensitivity, the Rosemount SAM42 should be installed
downstream from and as close as possible to a 90° bend and not
further away than 75 cm. Care should be taken to avoid installation
near known sources of unwanted noise such as choke valves or
cyclonic de-sanding equipment. Excessive levels of unwanted noise
may compromise the measurement principle. See Figure 3-3.

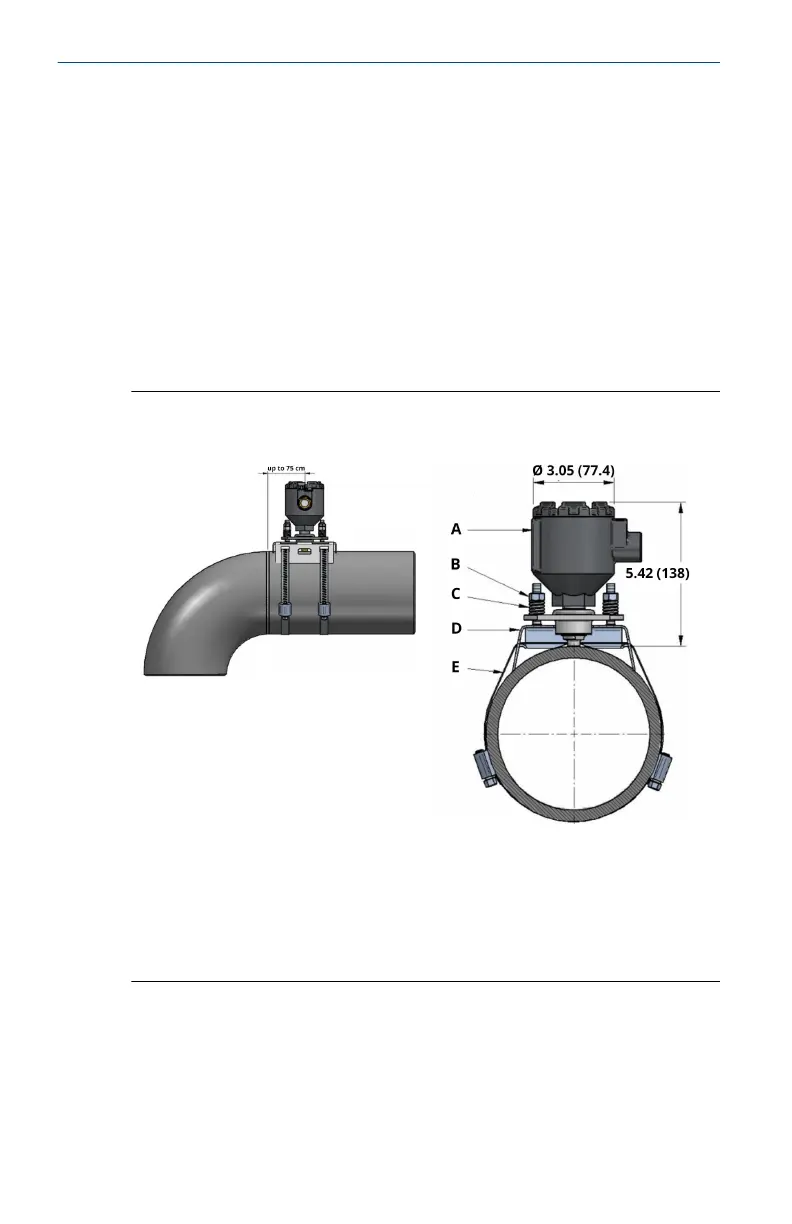

Figure 3-3: Illustration of SAM42 Acoustic Monitor installation on
a pipe
A. Detector housing
B. Fixing bolts & nuts
C. Loading springs
D. Mounting socket
E. Mounting strap
Dimensions are in inches (millimeters).
