Note
When tightening the nuts onto the studs, ensure that the
flange remains parallel to the mounting socket. This will
ensure that the waveguide of the sensor is flush against the
measurement surface.
5. Once the gauge fits as described, re-check the following:
a. The flange is parallel to the mounting socket on all
sides.
b. The waveguide contact with the pipe is flush.

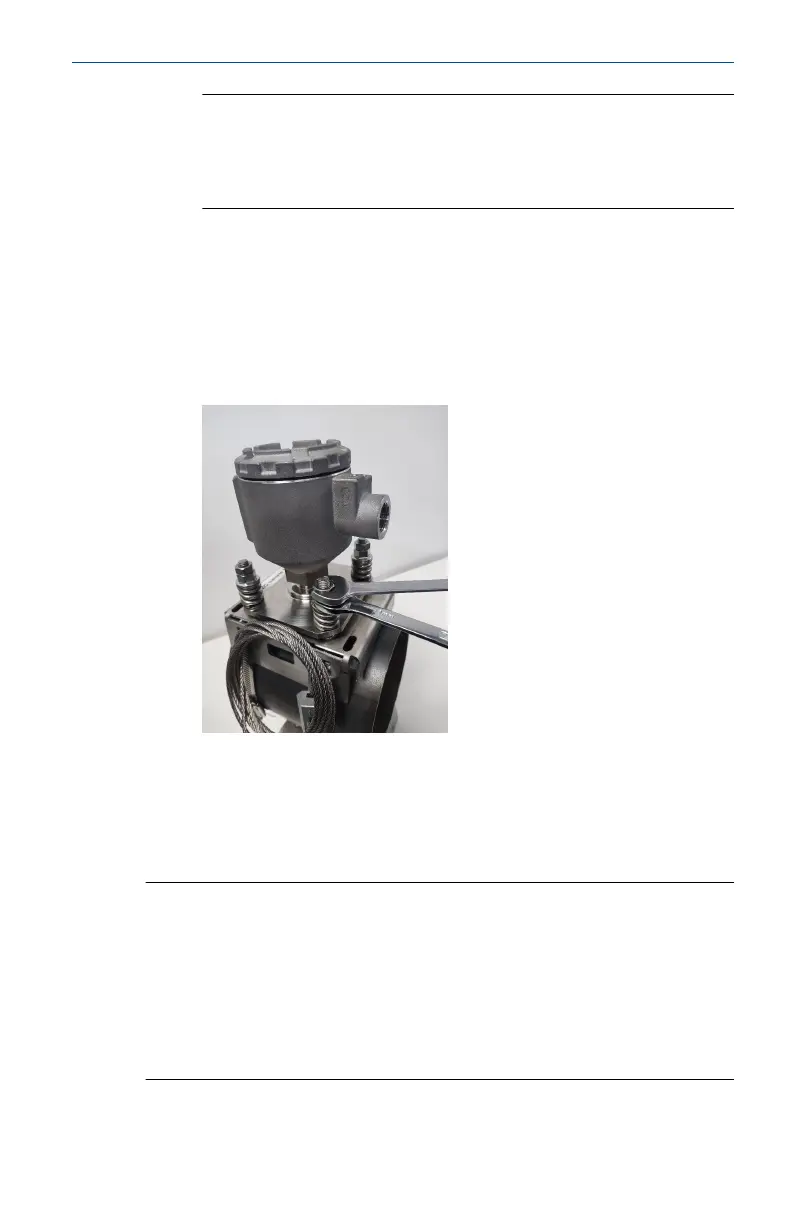

If this is the case, add the locking nuts onto the studs and
tighten using two spanners.
3.7 Cabling into the Rosemount SAM42 Acoustic Particle
Monitor
This section describes the process of cabling into the device. To
complete this successfully, follow the process detailed below.
Note
Before wiring the device, review the electrical considerations.
When routing the cable to the device, ensure that the following
considerations are taken into account:
• The cable is not making contact with the pipe or hot surfaces.
• The cable is not bent above its minimum bend radius.
• The necessary strain relief has been deployed.
