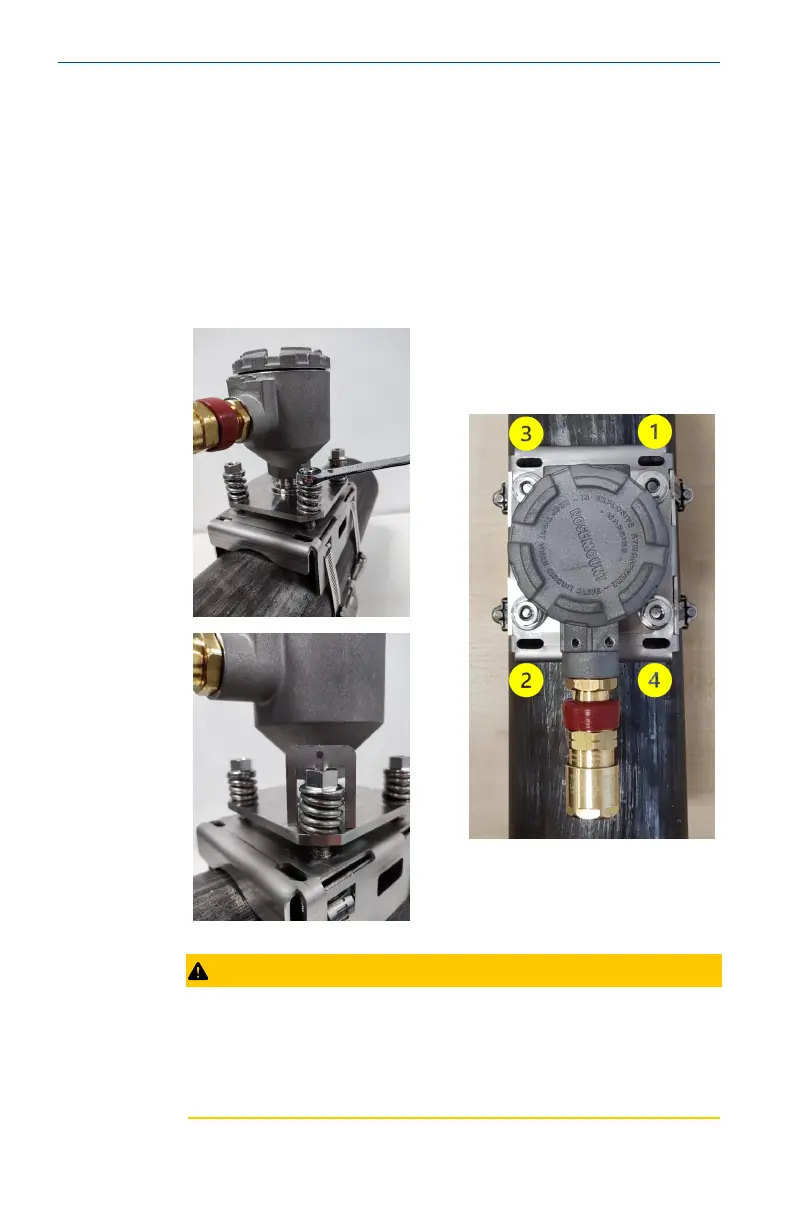

4. Tighten the nuts as follows:
a. Using cross-tightening, tighten the nuts onto the studs.
b. Tighten each nut in ½ turn steps.
c. Complete four complete rotations.
d. Check using height gauge.
e. Repeat until gauge legs are touching the flange, and in
contact with the top of the nut.
CAUTION
When tightening the nuts and compressing the springs, be
careful not to get clothing or body parts caught as there is a
possibility that they could become caught and damaged in the
springs.
