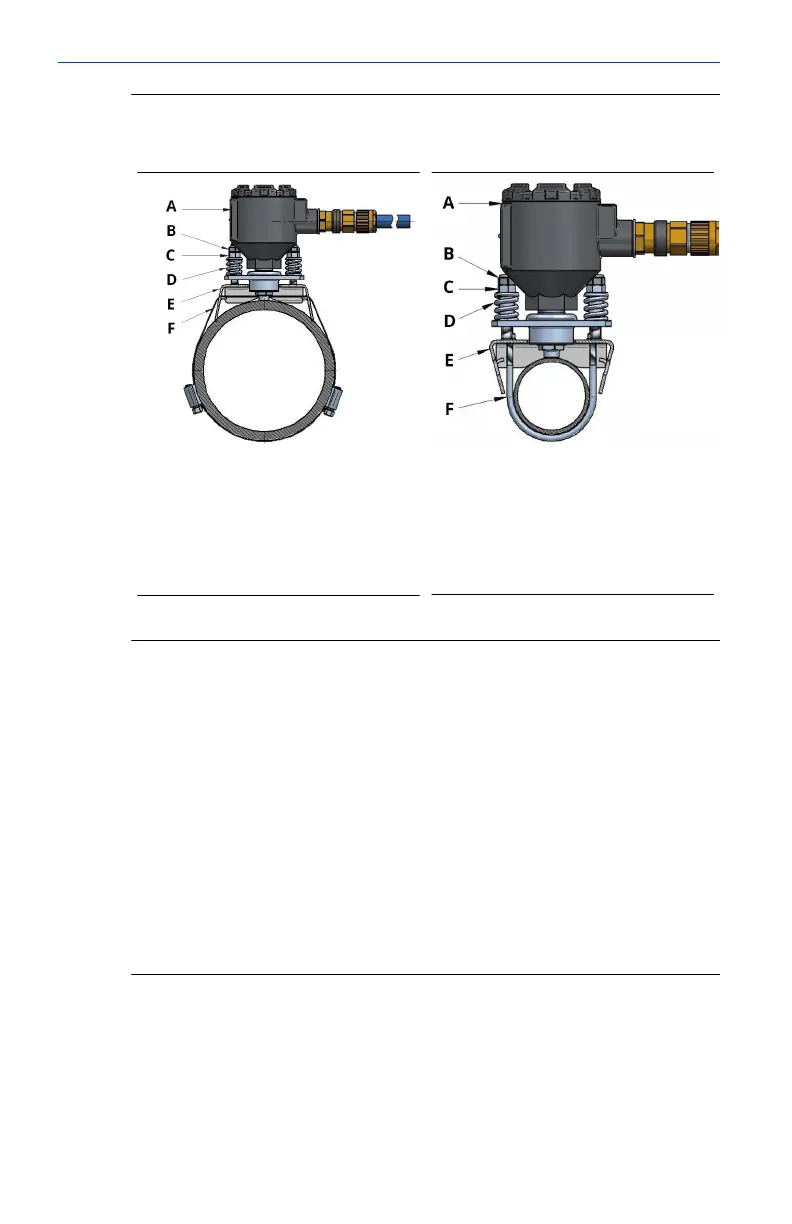

Figure 1-1: SAM42 Acoustic Particle Monitor
Mounting > NPS 2
A. SAM42 Transmitter
B. Locking nut
C. Compression nut
D. Loading spring
E. Mounting socket
F. Strapping
Mounting NPS 2
A. SAM42 Transmitter
B. Locking nut
C. Compression nut
D. Loading spring
E. Mounting socket
F. U-bolt
1.1 What's in the box?
The device is delivered in a cardboard box containing:
• 1 x Rosemount SAM42 Acoustic Particle Monitor
• 1 x Mounting socket
• 1 x Mounting strap kit (or U-bolts)
• 1 x Loctite 5990
• 1 x Cable gland (if selected)
• 1 x Safety barrier (Ex-ia only, and if selected)
• 1 x Paper copy of this guide
Note
The Rosemount SAM42 Acoustic Particle Monitor and mounting
socket will vary between a standard or high temperature variants,
this is dependent on the selection made on the order model.
Mounting hardware will be dependent on the model code which is
ordered. If mounting on NPS 2 then, U-bolts will be supplied with the
product. If > NPS 2 then, strapping will be supplied with the product.
