36 Unidrive M / HS Frame 7 to 10 Power Installation Guide
Issue Number: 5
A special procedure is necessary when through hole mounting size 7 in a high IP enclosure to move
an EMC bracket that would otherwise prevent a good seal. This procedure is described in Figure 3-
14.

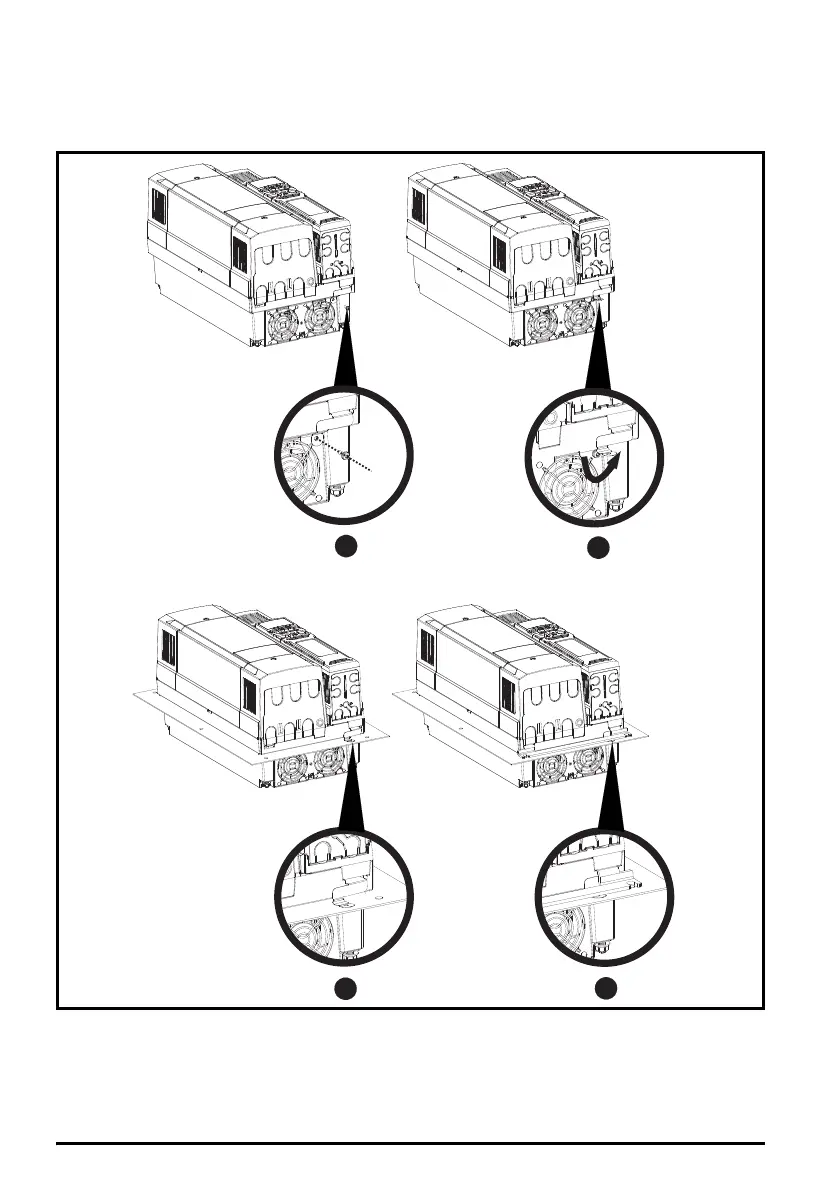

Figure 3-14 Special procedure for size 7 only
1) Remove screw shown using T20 torque driver
2) Bend EMC bracket 90 degrees as shown
3) Fit sealing gasket and place drive in panel cutout
4) Ensure EMC bracket is trapped under lower mounting bracket when fitting brackets
Unidrive M frame7 to 10 Power Installation Guide issue5.book Page 36 Tuesday, May 24, 2016 11:52 AM
