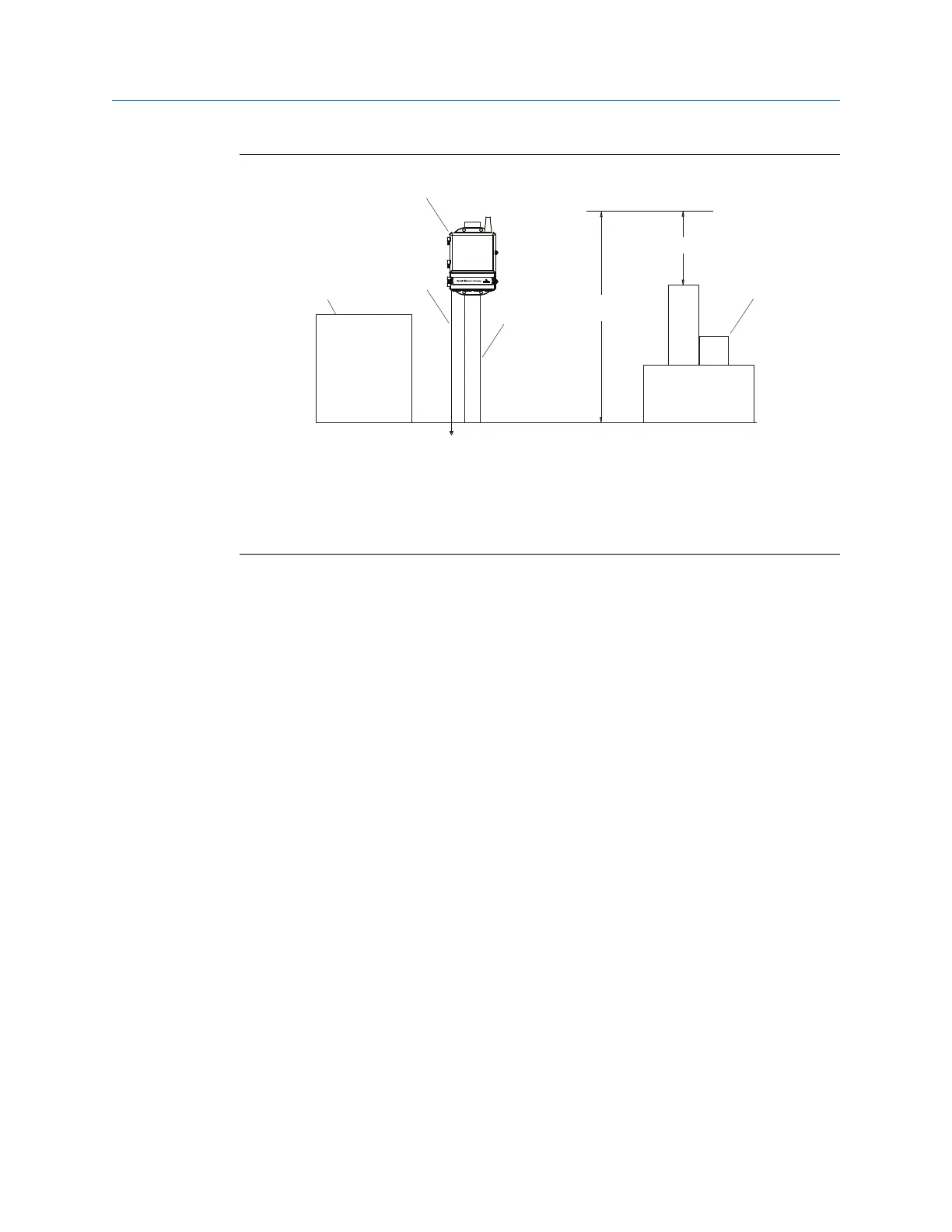

Figure 3-1: Gateway Installation
C
B
D
E
15 to 25 ft
(4,6 to 7,6 m)
6 ft (2 m)
A
A. Control room
B. Ground
C. Gateway
D. Mast or pipe
E. Infrastructure
3.2.1
Pipe mount
The following hardware and tools are needed to mount the Gateway to a 2-in. pipe:
• Two -in. u-bolts (supplied with Gateway)
• 2-in. mounting pipe
• -in. socket-head wrench
Mount the Gateway using the following procedure:
Procedure
1. Insert one u-bolt around the pipe, through the top mounting holes of the Gateway
enclosure, and through the washer plate.
2. Use a -in. socket-head wrench to fasten the nuts to the u-bolt.
3. Repeat for the second u-bolt and the lower mounting holes.
