A.6 Dimensional drawings

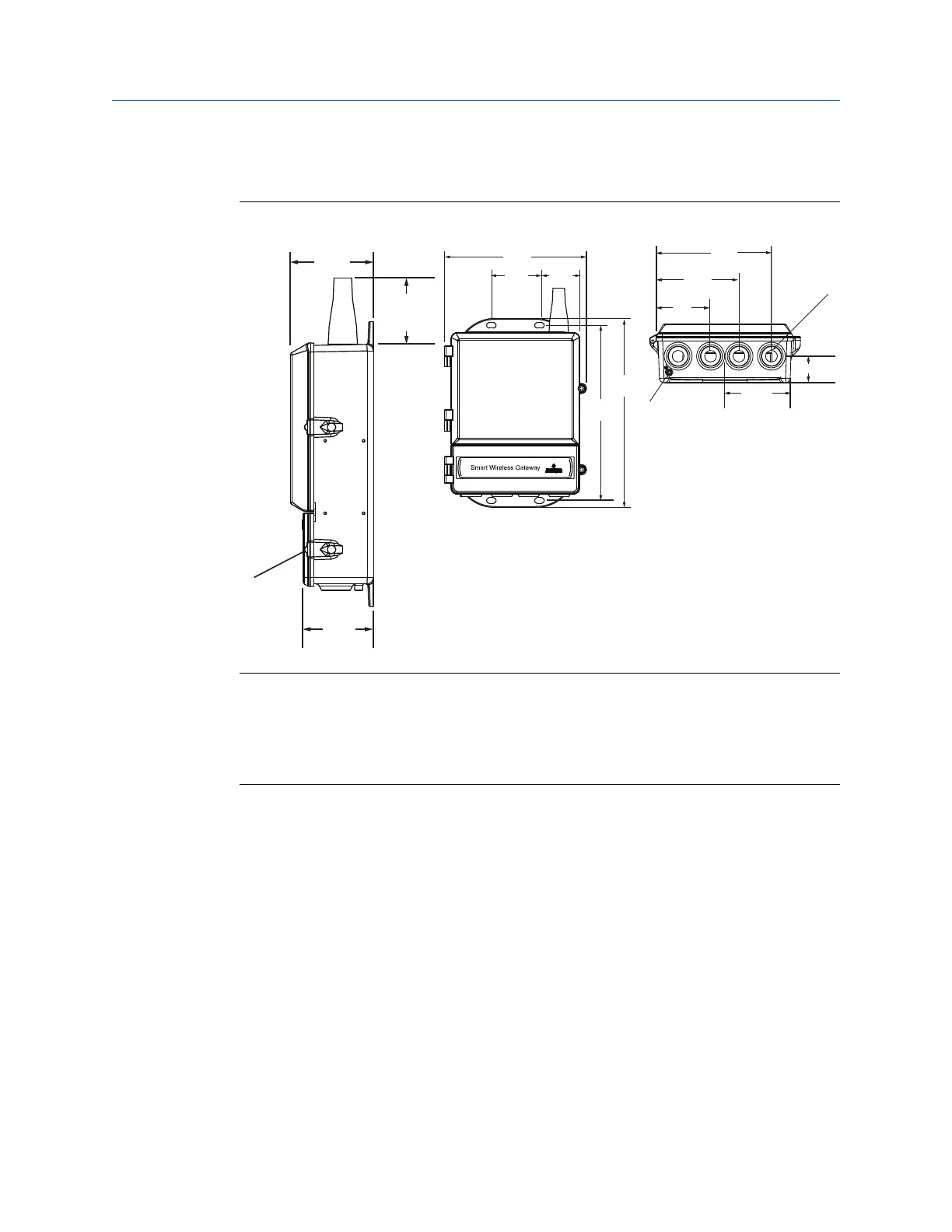

Figure A-1: Gateway
2.93
(74,42)
A
3.51
(89)
2.96
(75)
9.02
(229)
2.81
(71,4)
2.525
(64,14)
11.15
(283)
12.03
(306)
6.72
(171)
4.78
(121)
3.08
(78)
1.59
(40)
3.99
(101)
B
C
A. Lower cover (remove for electrical connections)
B. Ground lug
C. 1/2-in. NPT conduit connection (four places)
Dimensions are in inches (millimeters).
