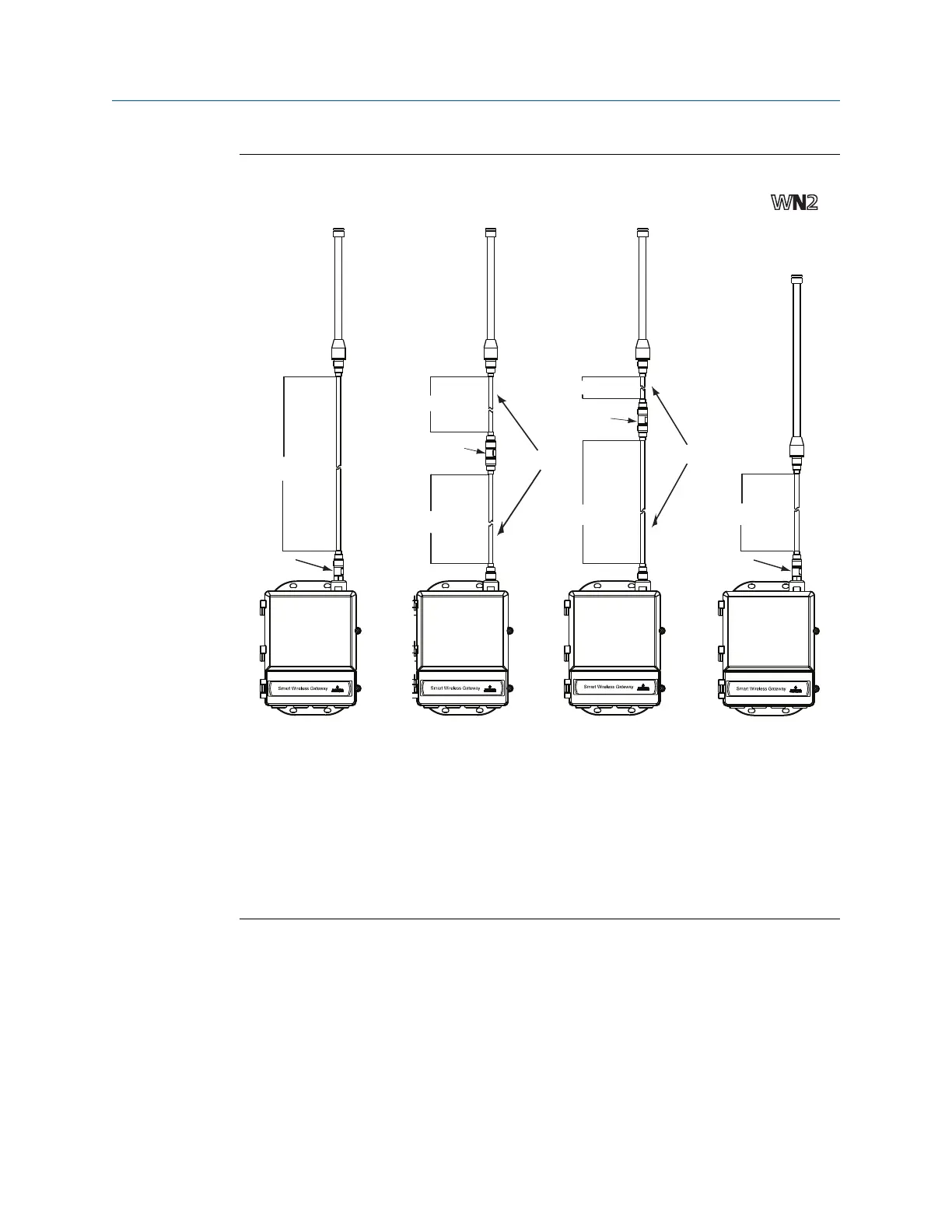

Figure A-2: Remote Omni-Antenna Kit
WL2
WL4
WL3
WN2
A A A A
B
C
D
D
D
D
E
E
F
G
H I
A. Antenna
B. 2 ft. (6,1 m) cable
C. 10 ft. (3,0 m) cable
D. Lightning arrestor
E. Interchangeable cables
F. 50 ft. (15,2 m) cable
G. 30 ft. (9,1 m) cable
H. 40 ft. (12,2 m) cable
I. 25 ft. (7,6 m) cable
A.6.1
Remote omni-antenna kit
The remote omni-antenna kit includes sealant tape for remote antenna connection, as
well as mounting brackets for the antenna, lightning arrestor, and the Smart Wireless
Gateway.
Lightning protection is included on all the options. WL3 and WL4 provide lightning
protection along with the ability to have the Gateway mounted indoors, the antenna
mounted outdoors, and the lightning arrestor mounted at the building egress.
Reference Manual Specifications and Reference Data
00809-0200-4420 September 2020
Emerson.com/Rosemount 71
