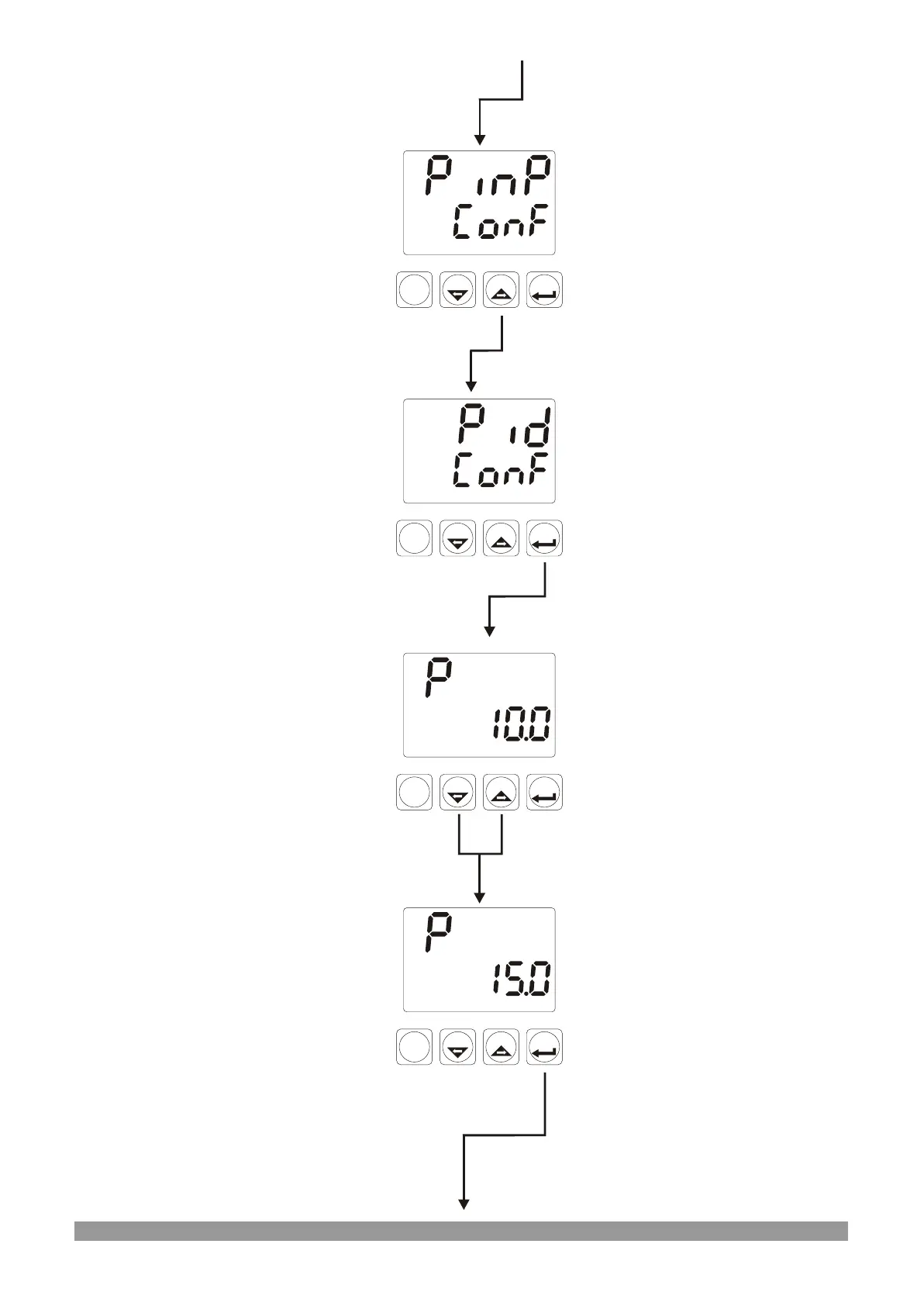

PID CONF Menu
PID algorithm parameters
Enter Set button to access to Pýd
ConF menu
Proportional Band Selection
Parameter can be changed with
increment and decrement
buttons
Proportional Band Selection
Press Set button to confirm the
value and access to the next
parameter
PINP CONF Menu
Configuration parameters of
process input
Technician can access to the
following menu by pressing menu
changing next button
Technician can access to the
former menu by pressing
menu changing back button.
Technician can access to the
former menu by pressing
menu changing back button.
