39

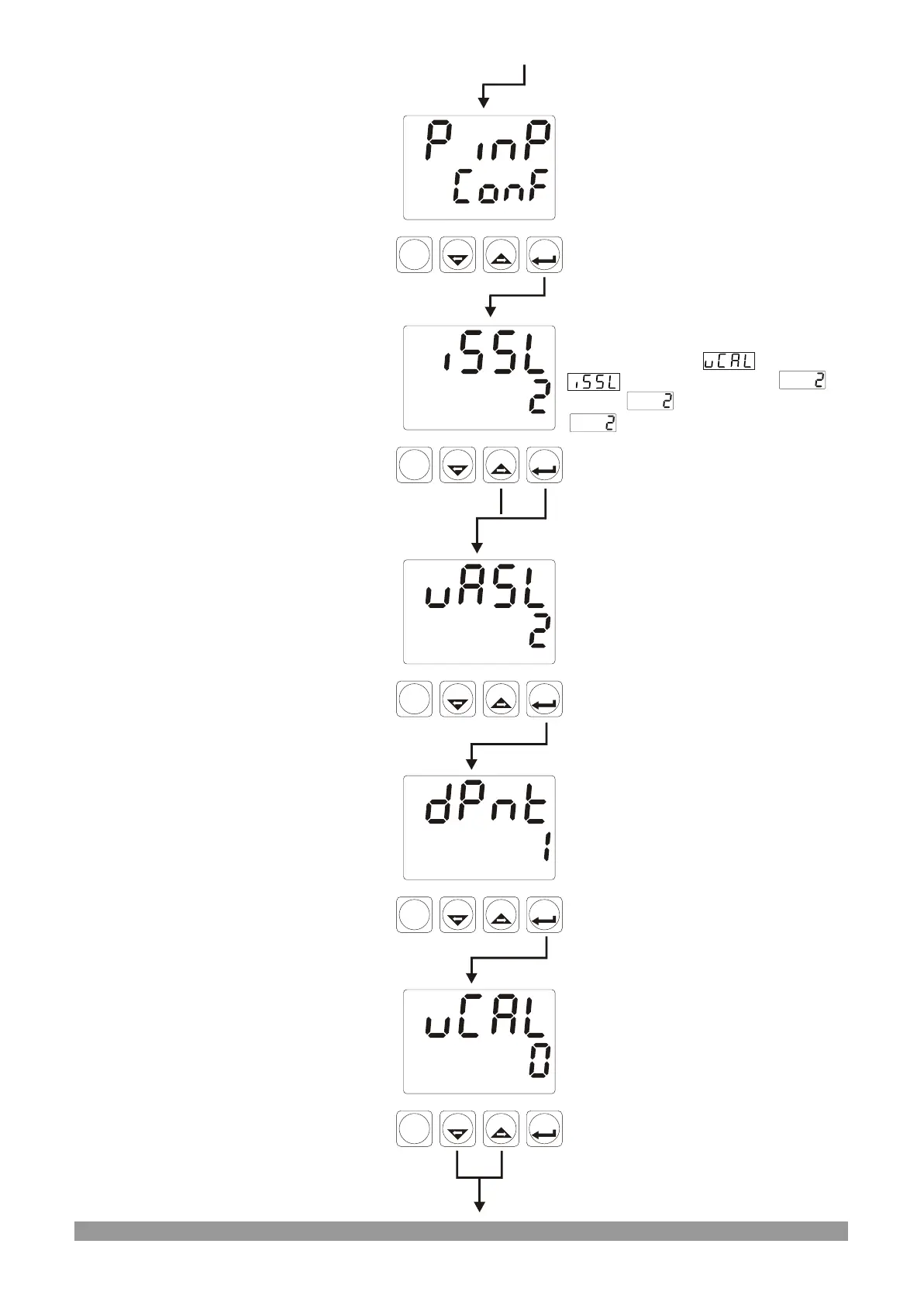

PINP CONF Menu
Configuration parameters of
process input
Enter PýnP ConF menu by
pressing Set button
Process Input Type Selection
Press Set button to confirm the
value and access to the next
parameter
Press Set button to access
to the next parameter
ZVoltage / Current Input
Type Selection
Parameter can be changed with
increment and decrement
buttons
ZVoltage / Current Input
Calibration Type Selection
Decimal Point Position
Technician can access to the
former menu by pressing
menu changing back button.
For accessing to parameter,
parameter must be .If
it is not ,change the value as
With increment button.
Press Set button to access
to the next parameter
