EMP E2512A - Parts List; Schematics

Specifications
9970002204, REV E, 4/16/2012 © 2011 EMP 11
Vehicle Ignition Parameters
Parameter Min Nom Max Unit
Vin 9 13.5 or 27 32 V
IGN Current (13.5v) - 2.5 - mA
IGN Current (27.5v) - 4 - mA
Vin – Low (sleep) -50 0 1 V
Parts List
The following connector kits are available for WP29 connections.
1370001077 – DTM Connector 6 Pin Service Parts Kit
1370001078 – DTP Connector 4 Pin Service parts Kit
Drawings for wiring kits can be found at
http://www.emp-corp.com/support/documents/ and by
entering the appropriate part number in the “Enter Text to Search” field.
Schematics

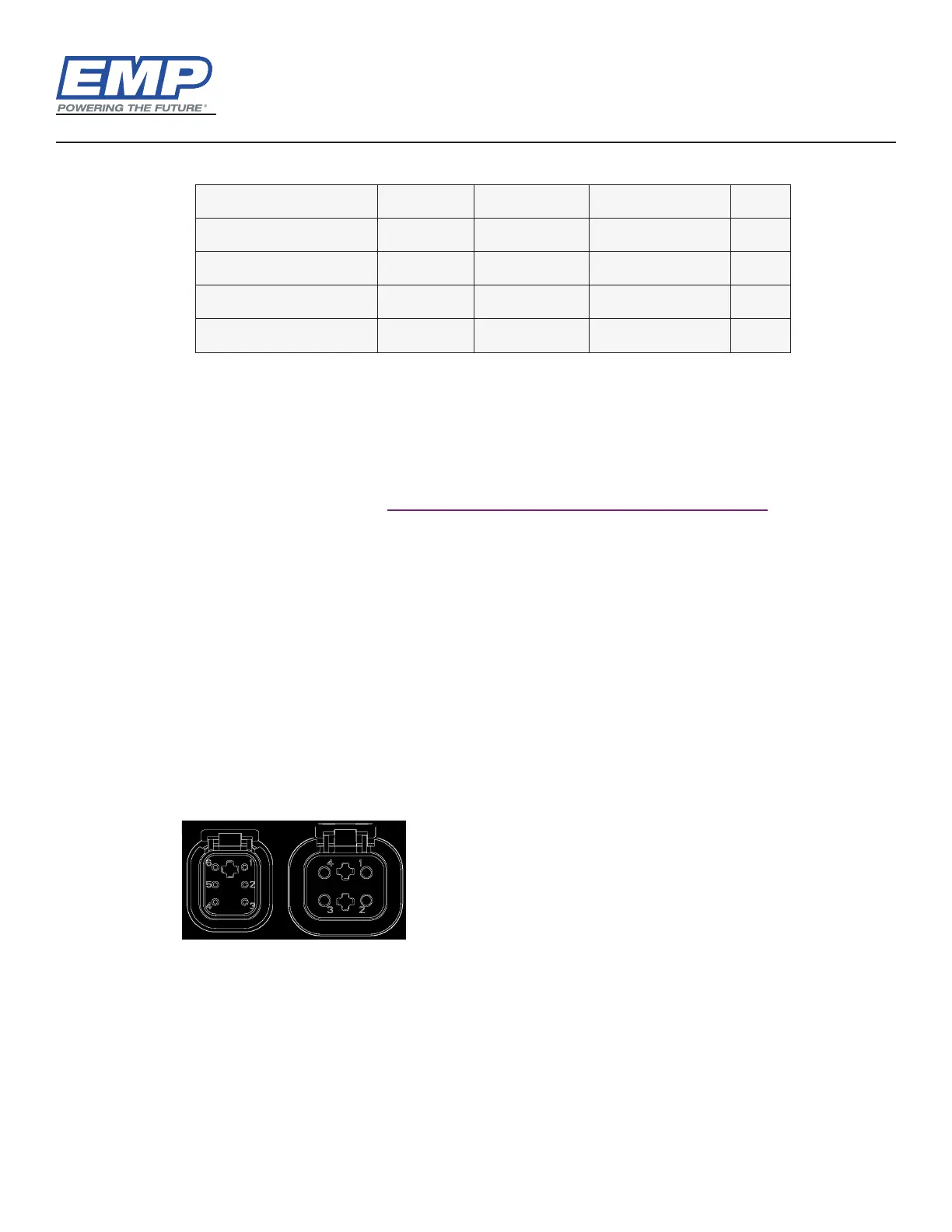

Figure 2 Controller connectors
:A3+4(3423(20(%&' !3+3%&'%!B1&9C0(
&AD3(
7AC2
;@!D3!!3
:A123B
&A1234B!5(
7A40!25D3(
;A40!25E
8A40!250E
6A1235
3
A

A



