WEP Key: To disable WEP security, click on the “Disable” option. To enable
WEP security, there are 2 types to select – 64bits and 128 bits. When it is
selected, the key value must be entered in ASCII or HEX format.
Note: When WEP security is enabled, all the wireless clients that wish to
connect to the Access Point must also have WEP enabled with the identical
WEP Key value entered.
Apply: For the changes made to any of the items above to be effective, click
“Apply”. The new settings are now been saved to Access Point and will be
effective once the Access Point restarts.

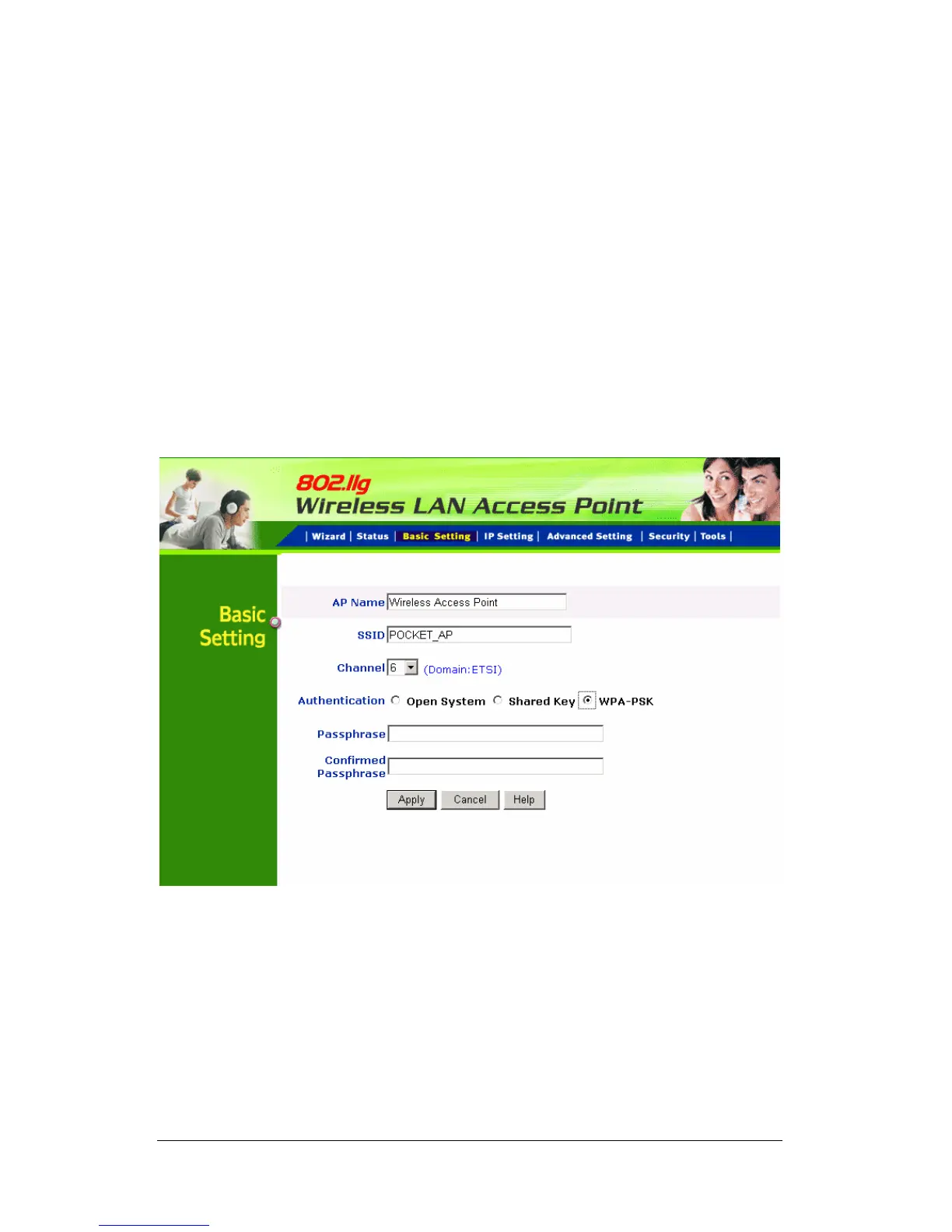

If WPA-PSK is enabled, user needs to set the key in the passphrase field as the
below screen. The key length should be 8 characters at least.
Note: Once WPA-PSK function enables, it will take some time to make the
setting active.
11
