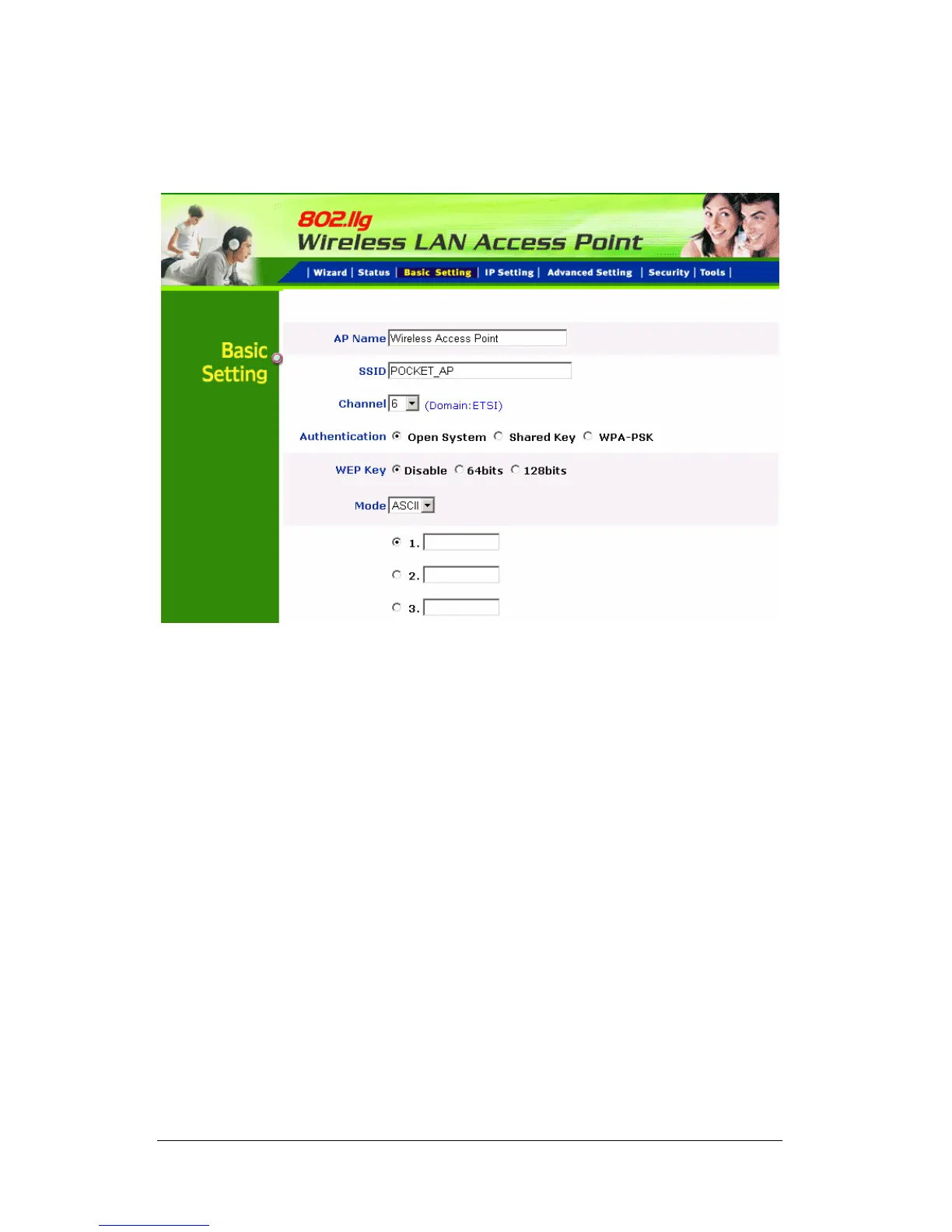

3.2 Basic Setting
This is the page allow user to change the access point settings.
AP Name: The name of the AP, which can be used to identify the Access Point
among the all the Access Points in the wireless network.
SSID: Service Set Identifier, which is a unique name shared among all clients
and nodes in a wireless network. The SSID must be identical for each clients
and nodes in the wireless network.
Channel: The channel that AP will operate in. User can select the channel
range from 1 to 11 for North America (FCC) domain, 1 to 13 for European (ETSI)
domain and 1 to 14 for Japanese domain.
Authentication Type: The authentication type default is set to open system.
There are four options: open system; shared key; WPA and WPA-PKS. User
may want to set to Shared Key when the clients and AP in the same wireless
network enable the WEP encryption. All the nodes and hosts on the network
must use the same authentication type.
10
