7.4 Routing
This selection leads to set how the router forwards data: Static and Dynamic.
Routing Table enables user to view the information created by the router that
displays the network interconnection topology.

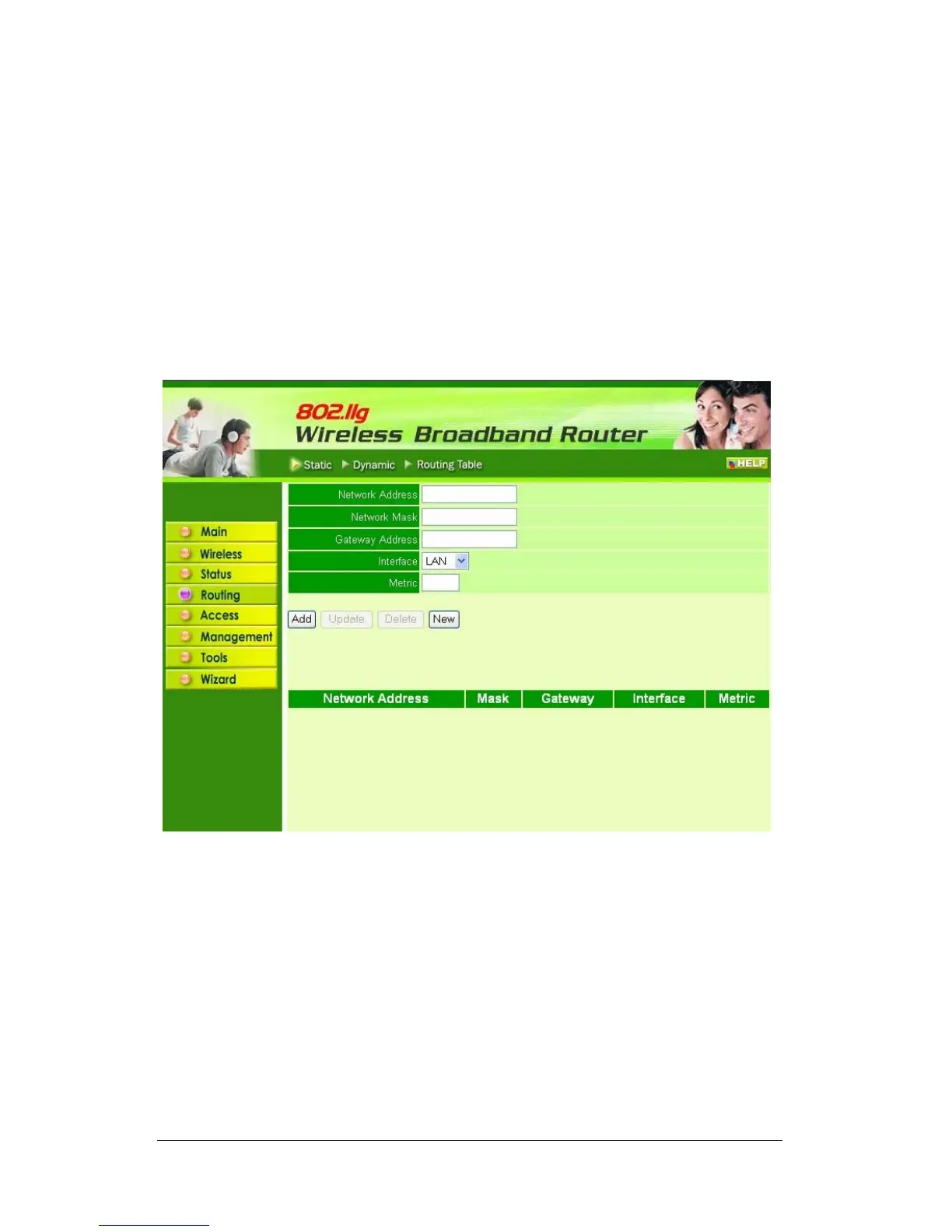

7.4.1 Static
It enables user to set parameters by which the router forwards data to its
destination if network has a static IP address.
Network Address: Type the static IP address which network uses to access
the Internet. ISP or network administrator provides this information.
Network Mask: Type the network (subnet) mask for network. If user does not
type a value here, the network mask defaults to 255.255.255.255. ISP or
network administrator provides this information.
Gateway Address: Type the gateway address for network. ISP or network
administrator provides this information.
Interface: Select which interface, WAN or LAN, used to connect to the Internet.
Metric: Select which metric to apply to this configuration.
54
