Connection Type: Select the connection type, either DHCP client, Fixed IP or
PPPoE from the drop-down list.
WAN IP: Select whether to specify an IP address manually, or DHCP to obtain
an IP address automatically. When āSpecify IPā is selected, type the IP address,
subnet mask, and default gateway in the text boxes. ISP will provide this
information.
DNS 1/2/3: Type up to three DNS numbers in the text boxes. ISP will provide
this information.
MAC Address: If required by ISP, type the MAC address of the router WAN
interface in this field.
DNS 1/2/3: Type up to three DNS numbers in the text boxes. ISP will provide
this information.

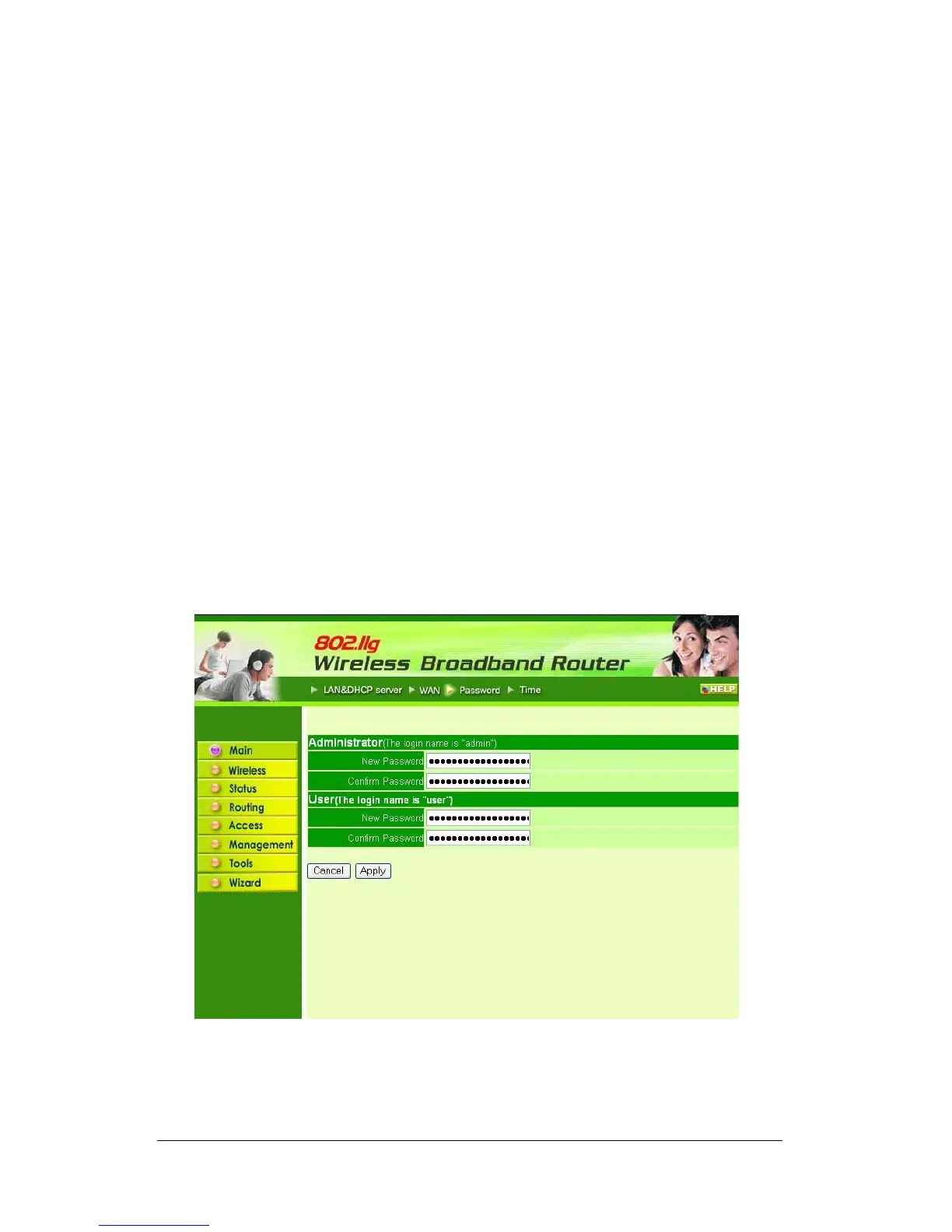

7.1.3 Password
This screen leads to set administrative and user passwords. These passwords
are used to gain access to the router interface.
Administrator: Type the password the Administrator will use to log in to the
system. The password must be typed again for confirmation.
43
