Step 10. Fix the gantry frame

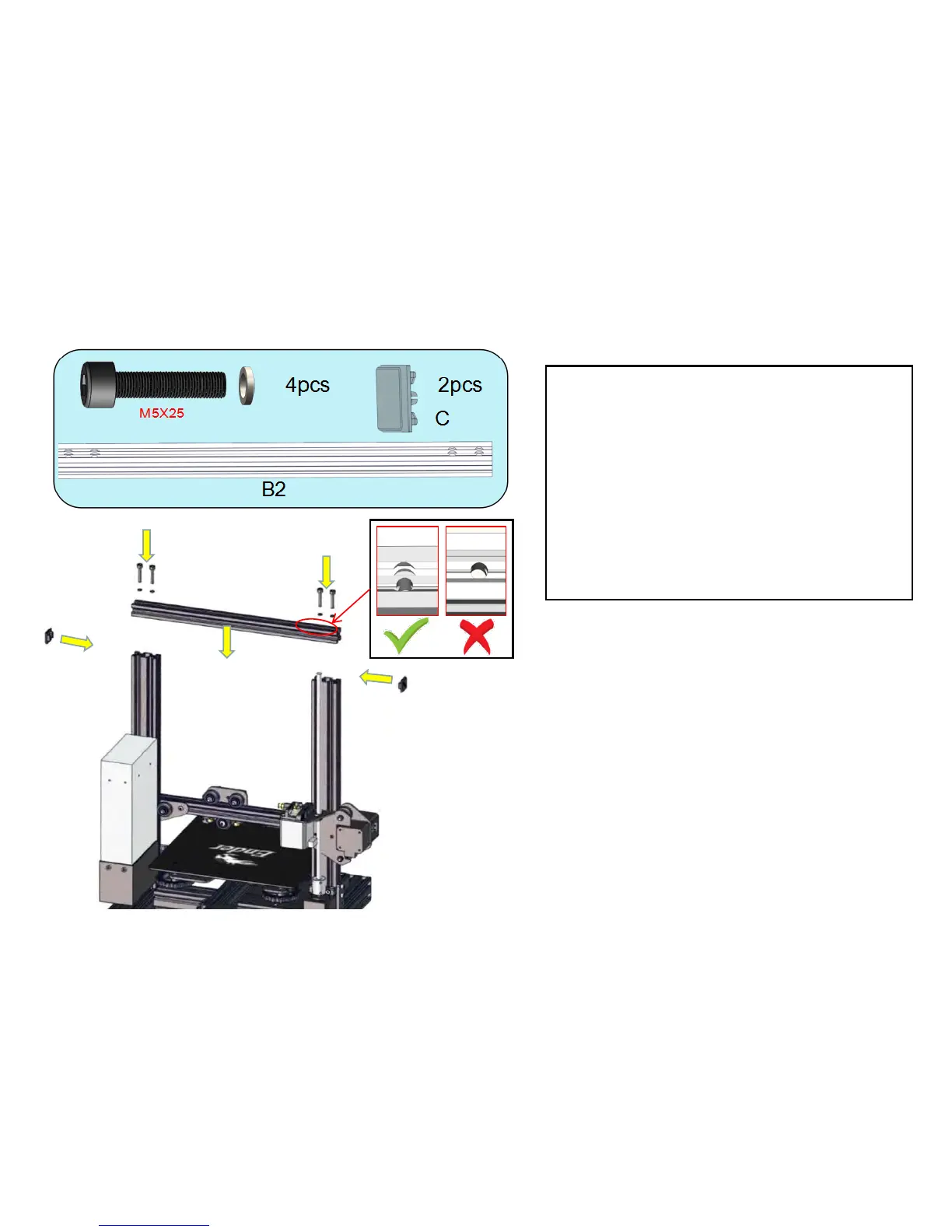

Step 1. Take out the aluminum profile
(B2), pay attention to the counterbore
hole at the top (see the figure on the left),
align the aluminum profile (B2) hole with
the threaded hole of the base (Ba), use
the M5*25 screw and washer, from the
top go through the aluminum profile
hole(B2), use a 4mm Allen key to tighten
the screws.
Step 2. Take out the end cover (C) of the
profile, and attach it to the ends of the
aluminum profile (B2). Apply a little
pressure and insert it into it. The end face
of the aluminum profile may be sharp. Be
careful not to scratch your hand.
Back
Prepare the following parts:
a. M5x25 socket head hex screws (4x)
b. M5 Washer (4x)
c. Profile end caps(C)-(2x)
d. Aluminum profiles (B2)-(1x)
e. 4mm hexagon wrench
To Next Page
