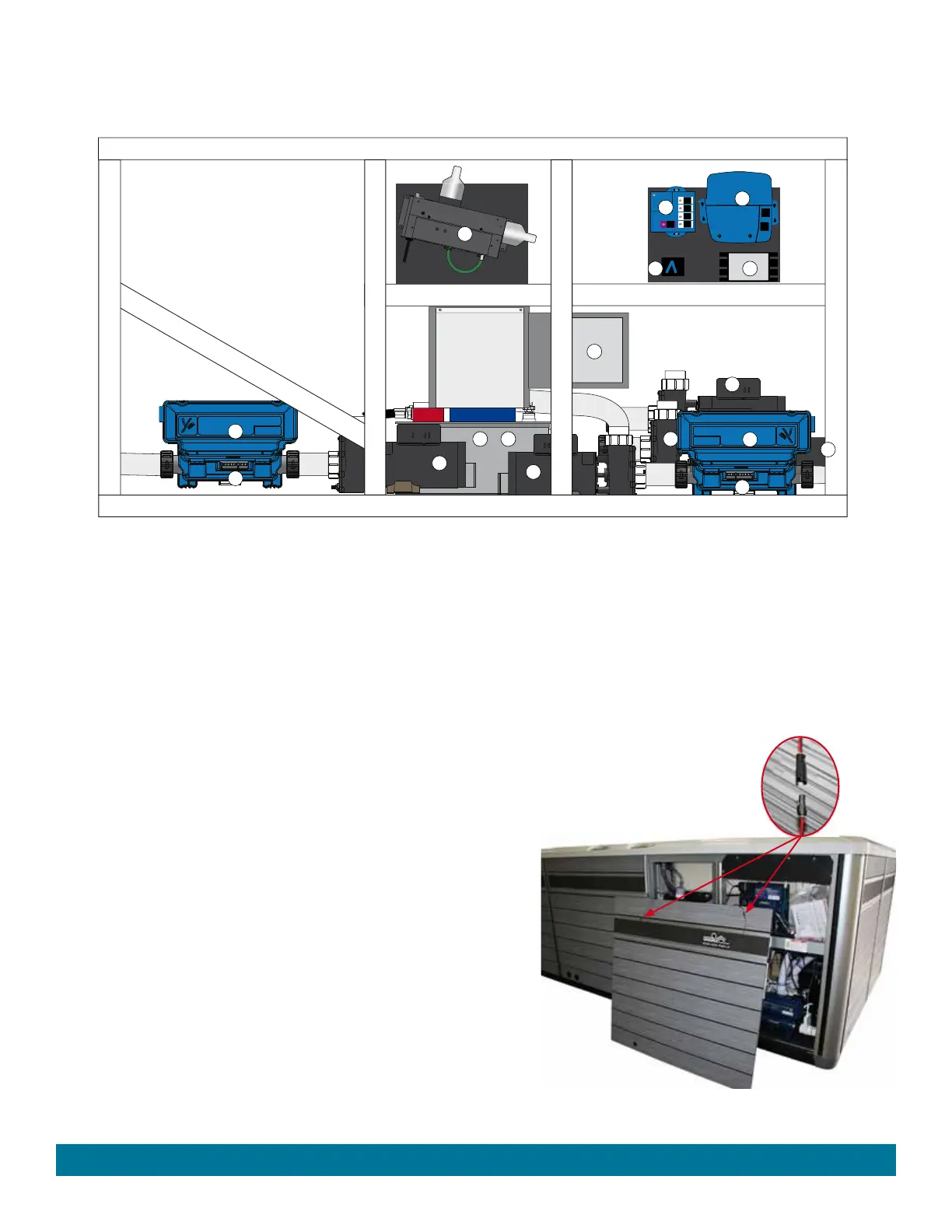

EQUIPMENT COMPARTMENT
The illustrations below are to be used as a reference only (your
fitness system
may look different). The equipment compartment is located below and to the
right of the control panels (spa side of the
fitness system
).
1. Hydromassage Jets pump
2. Circulation Pump Spa Side
3. Circulation Pump Swim Side
4. Control Box & Heater Spa Side
5. Control Box & Heater Swim Side
6. Bonding terminal
7. Swim Machine Hydraulic Unit
(smaller than illustrated)
8. Treadmill Hydraulic Unit (Optional
tandem unit used for both 7 & 8)
9. Junction Box
10. UVC Ozone Swim Side
11. Bluetooth Music (optional)
12. Subwoofer (optional)
13. Wi-Fi (optional)(2x)
14. Dual Output Power Supply for External.
lights
15. Ozone Unit Spa Side
7
9
3
4
5
6
8 1
Page 9
Electrical Requirements
2
DOOR PANEL REMOVE & REPLACE
REMOVE
1. Locate the vertical T-spacer to the left of the equipment compartment (back, control panel side of
fitness system
).
2. Remove the 4 screws (using an 8 mm (5/16") socket) holding the T-spacer then remove the T-spacer. Loosen the 4 screws on
the right side corner spacer but do not remove.
3. Lift panel and slide left until panel is no longer behind corner.
4. While holding panel, first pull panel up then pull bottom away from ENDLESS
POOLS fitness system, lower panel and set on ground.
Disconnect light bar wires
from each side of panel and remove.
REPLACE
1. Reconnect light bar wires.
2. Raise panel making sure it goes behind the bar top and rest on bottom frame.
3. Slide panel to the right behind corner.
4. Attach T-spacer back in place using 4 screws and tighten the 4 screws on the right
corner to complete the installation.
10
11
12
1
6
13
1415
