Site Requirements
E2000 MODEL
NOTE: ENDLESS POOLS requires that the E2000 Model be installed on a minimum 15 cm thick reinforced concrete pad or structurally sound deck able to support the “dead
weight” found in the specification chart on the back page.
WARNING: The E2000 Model must not be shimmed in any manner.
10 cm
226 cm
606 cm
*147 cm
33 cm
15 cm
267 cm
251 cm
DOOR SIDE
4.5 cm
ELECTRICAL CUTOUT
SPA DRAIN

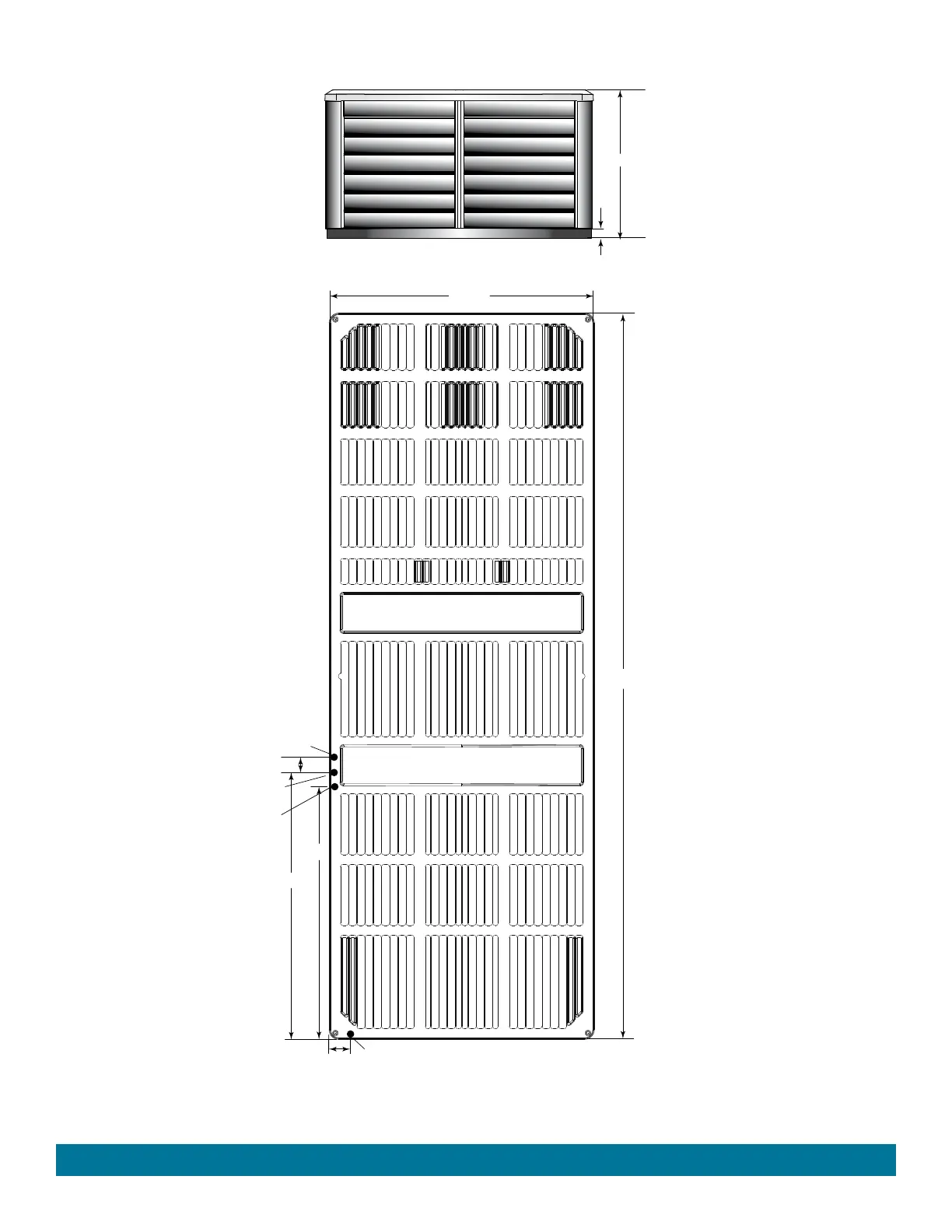

TOP VIEW OF BASE
SWIM DRAIN
4.5 cm
ELECTRICAL CUTOUT
