Installation Tankside Monitor NRF81
16 Endress+Hauser
5 Installation
5.1 Installation conditions
5.1.1 Wall mounting
150 (5.9)
150 (5.9)
ø
13.5 (0.53)
M12
≤15 Nm (11.06 lbf ")
A0029901

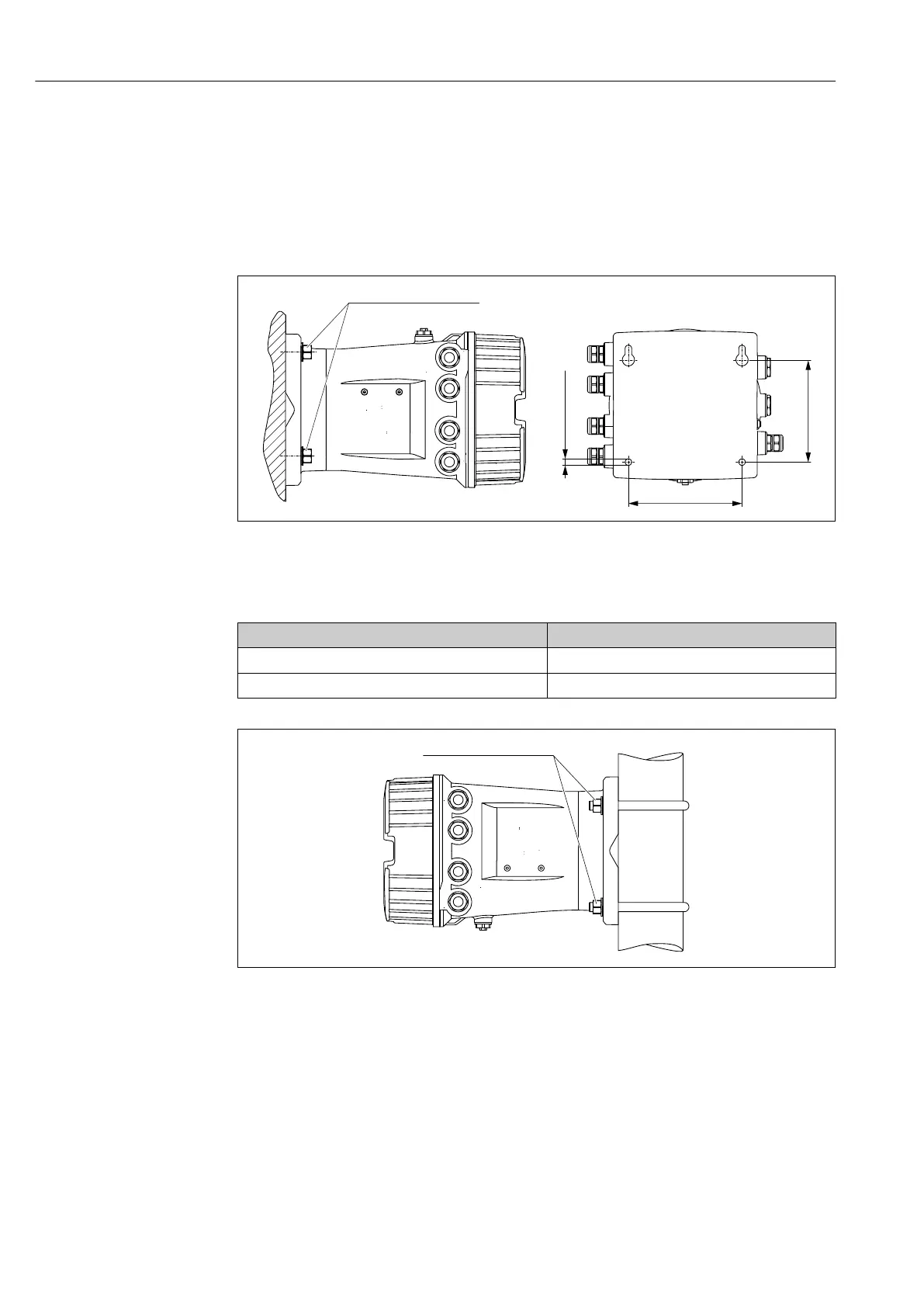

 3 Wall mounting of the Tankside Monitor
5.1.2 Pipe mounting
Ordering feature 620 "Accessory enclosed" Mounting kit
PV Mounting kit, pipe, DN32-50 (1-1/4" - 2")
PW Mounting kit, pipe, DN80 (3")
≤15 Nm (11.06 lbf ")
A0029899
 4 Mounting of the Tankside Monitor at a vertical pipe
