1
2
4
3
5
6
7

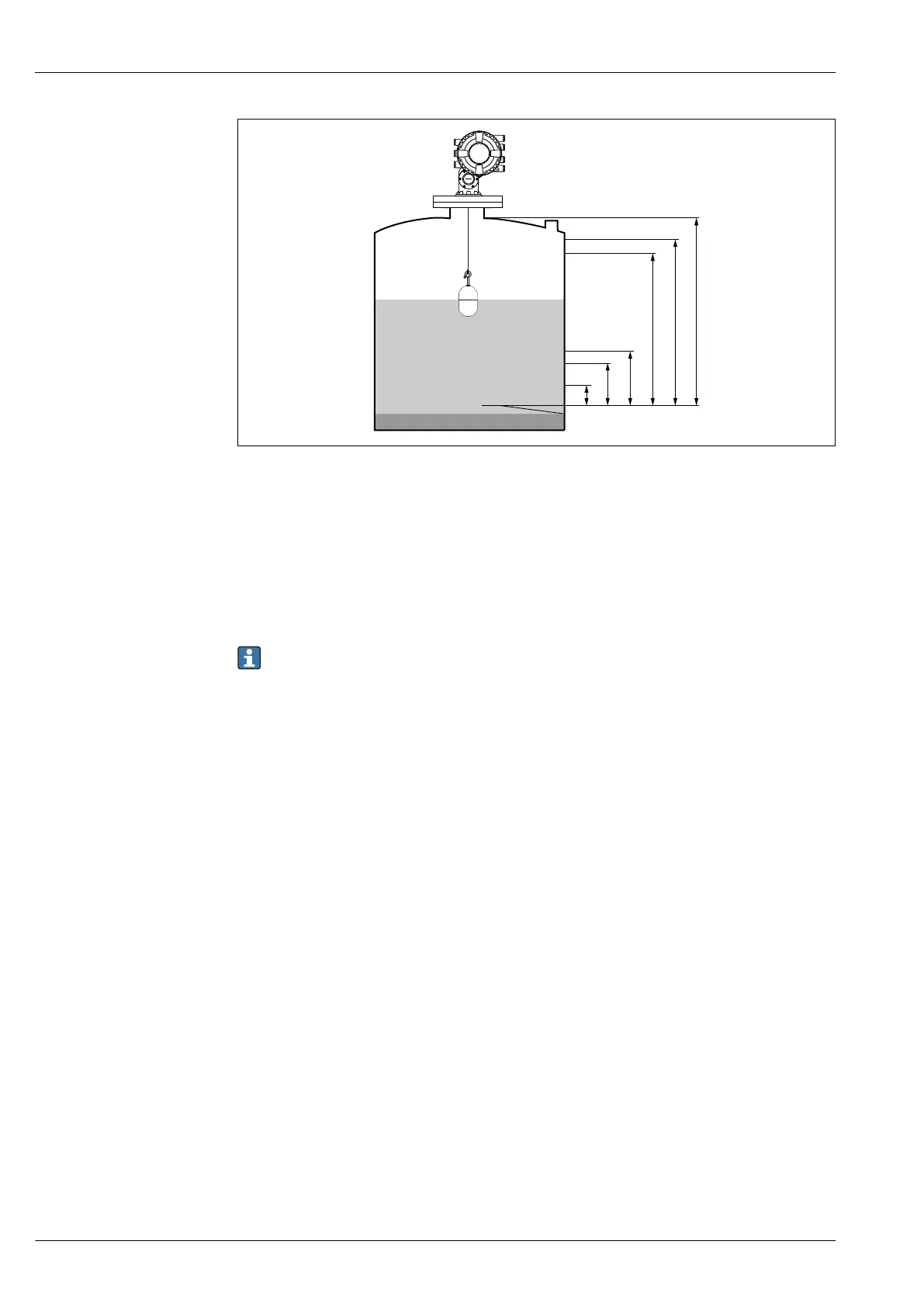

A0032821
1 Datum plate: reference point of the measurement
2 Low stop
3 4 mA, 0%
4 L or LL alarm
5 H or HH alarm
6 20 mA, 100%
7 High stop
The device can be used in this arrangement in safety instrumented systems for MIN safety, MAX
safety and range monitoring.
Correct installation is a prerequisite for safe operation of the device.
