8.2 Dimensions Prowirl 77 F
DN Standard Pressure d D H L X Weight
rating [mm] [mm] [mm] [mm] [mm] [kg]
15 / ½"
DIN PN 40 17.3 95.0
248 200 17 5.0
ANSI SCHED 40
Cl. 150 15.7 88.9
Cl. 300 15.7 95.0
ANSI SCHED 80
Cl. 150 13.9 88.9
Cl. 300 13.9 95.0
JIS SCHED 40 Cl. 20K 16.1 95.0
JIS SCHED 80 Cl. 20K 13.9 95.0
25 / 1"
DIN PN 40 28.5 115.0
255 200 19 7.0
ANSI SCHED 40
Cl. 150 26.7 107.9
Cl. 300 26.7 123.8
ANSI SCHED 80
Cl. 150 24.3 107.9
Cl. 300 24.3 123.8
JIS SCHED 40 Cl. 20K 27.2 125.0
JIS SCHED 80 Cl. 20K 24.3 125.0
40 / 1½"
DIN PN 40 43.1 150
263 200 21 10
ANSI SCHED 40
Cl. 150 40.9 127
Cl. 300 40.9 155.6
ANSI SCHED 80
Cl. 150 38.1 127
Cl. 300 38.1 155.6
JIS SCHED 40 Cl. 20K 41.2 140
JIS SCHED 80 Cl. 20K 38.1 140
Continued next page
(ISO / DVGW for DN 15...150)
ba037y24
Flanges according to:
• DIN 2501, raised face
acc. to DIN 2526 form C
• ANSI B16.5
• JIS B2238

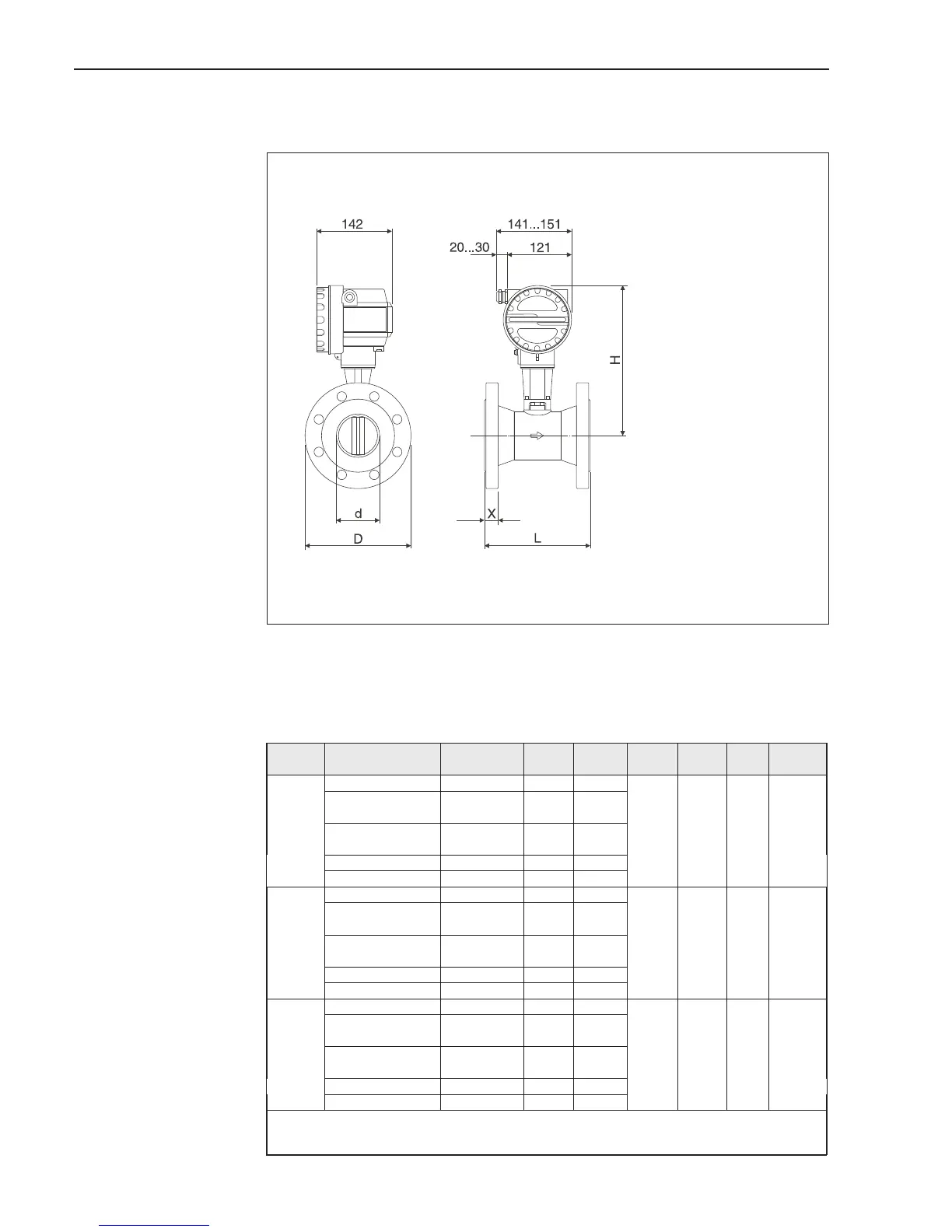

Fig. 16
Dimensions of Prowirl 77 F
For the high/low temperature option, H increases by 40 mm and the weight by
approx. 0.5 kg.
8 Dimensions and Weights Prowirl 77 PROFIBUS-PA
50 Endress+Hauser
