Battery Charger RLD
User's Manual

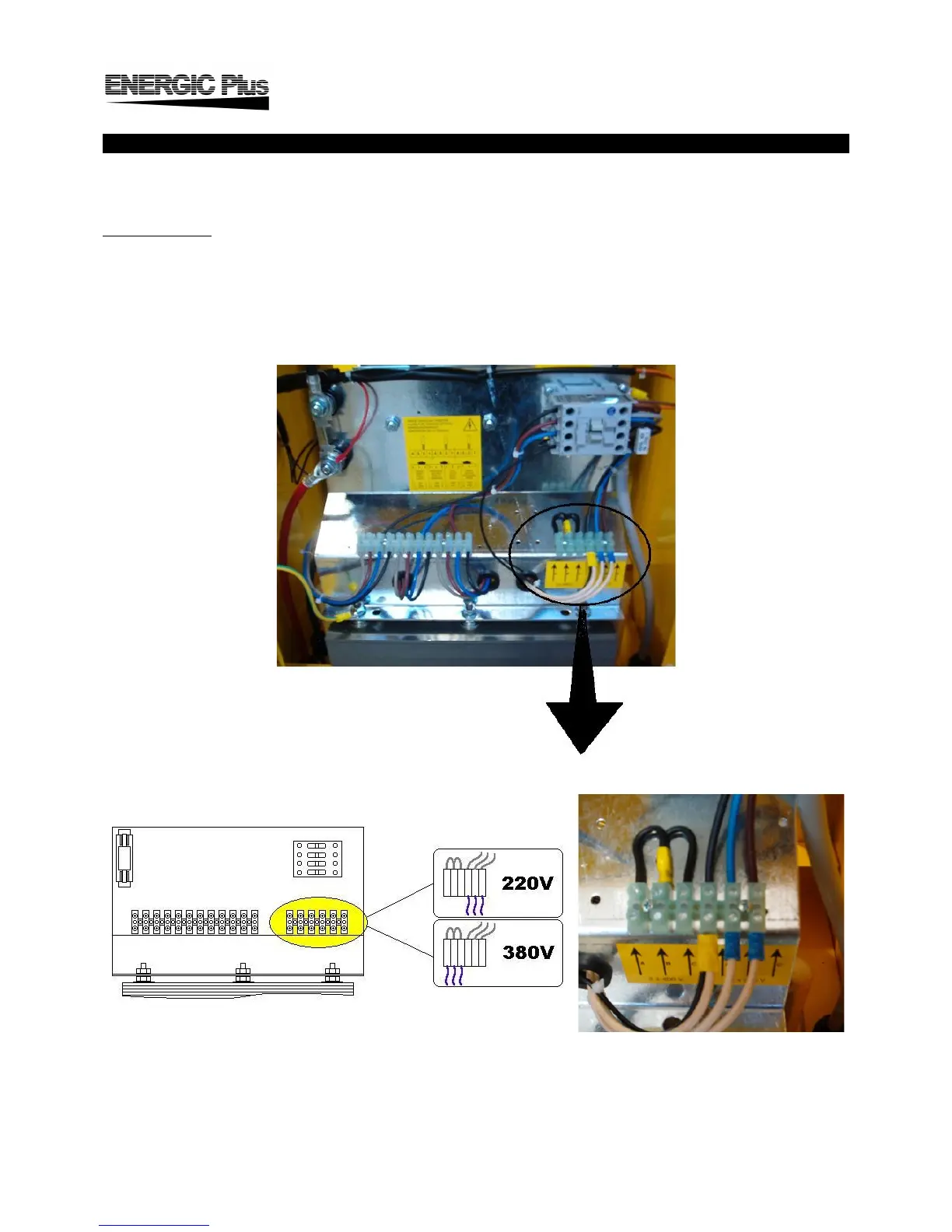

AC VOLTAGE SELECTION 3 x 220/380 V
The BOARD FOR INPUT VOLTAGE SELECTION is composed by six terminal blocks, to be
connected in one of the two configurations represented on the picture inside the charger.
PROCEDURE:
• Check that the charger is disconnected from AC input and battery;
• Open the cabinet and move the three wires (WHITE) in position 220V or 380V;
• Close the cabinet.
OWM-AR-D-[] Page 12 of 23
