Battery Charger RLD
User's Manual

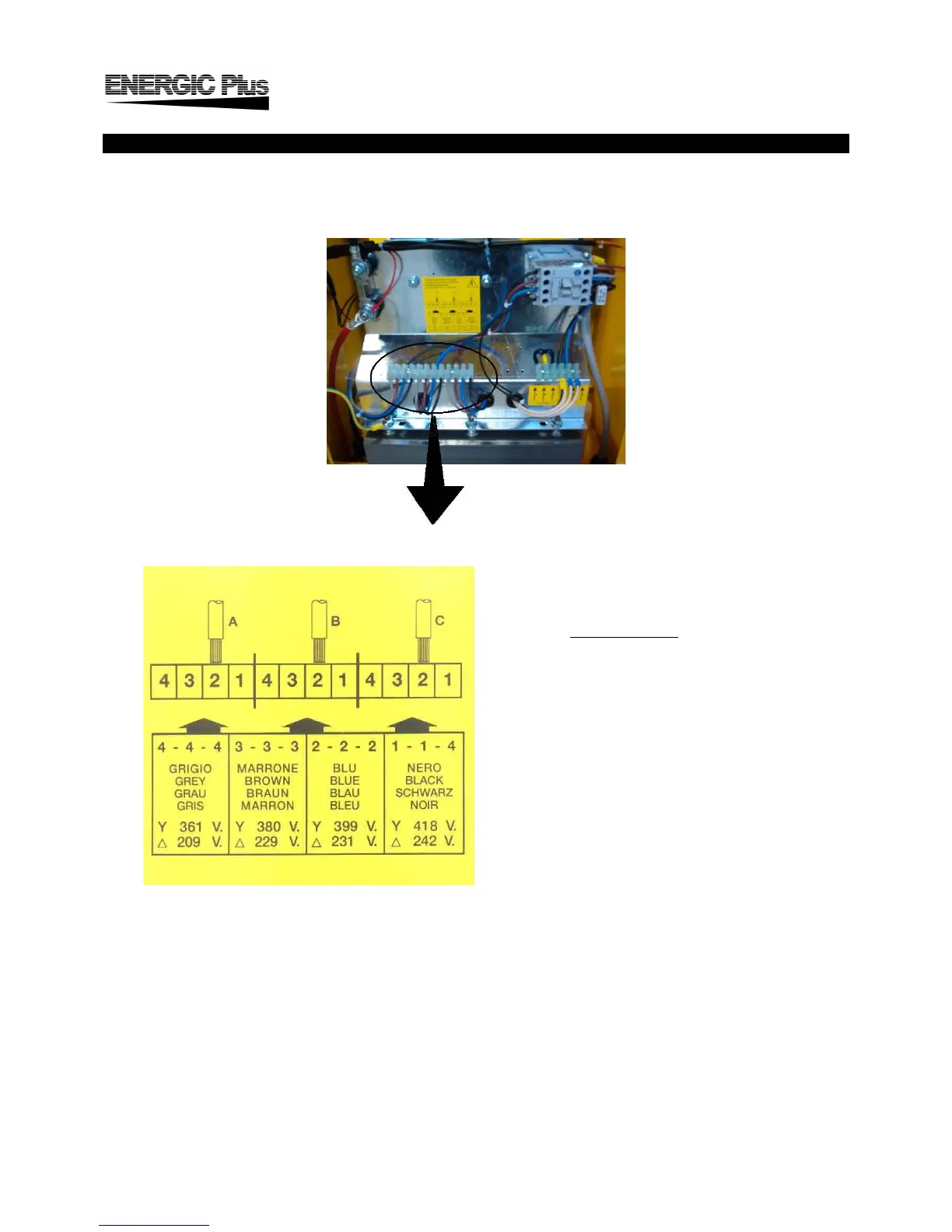

AC INPUT VOLTAGE ADJUSTMENT
The local AC input voltage must be measured with an adequate voltmeter, then the charger input
must be adjusted by moving the three wires marked with the letters A, B, C on the PLUGS FOR
INPUT VOLTAGE ADJUSTMENT.
PROCEDURE:
• Check that the charger is disconnected
from AC input and battery;
• Open the cabinet and move the wires A, B,
C to the desired position.
• Close the cabinet.
OWM-AR-D-[] Page 13 of 23
