4.2 Viewing total accumulated values (on an accrual basis)
The amount of active imported, active exported (only for bi-directional meters), reactive imported and exported
energy on an accrual basis, cumulatively and by tariffs is available for viewing on the meter’s LCD in the first group
of parameters.
The meter keeps record metering to tariffs, according to the specified tariffing parameters and the time of
the built-in clock. The current tariff and the type of energy measured is displayed on the meter’s LCD with the
corresponding OBIS code (in the upper left corner of the LCD indicator (see Figure 4.1)), according to the scheme
given in Table 4.2.
In the event of an overcurrent in the circuit of the neutral wire by 5 (or 10)% relative to the current in the circuit of
the phase wire and the allowed metering by the neutral wire, the consumption metering is performed via the neutral
wire. In this case, «N» symbol will be displayed on the LCD.
OBIS code

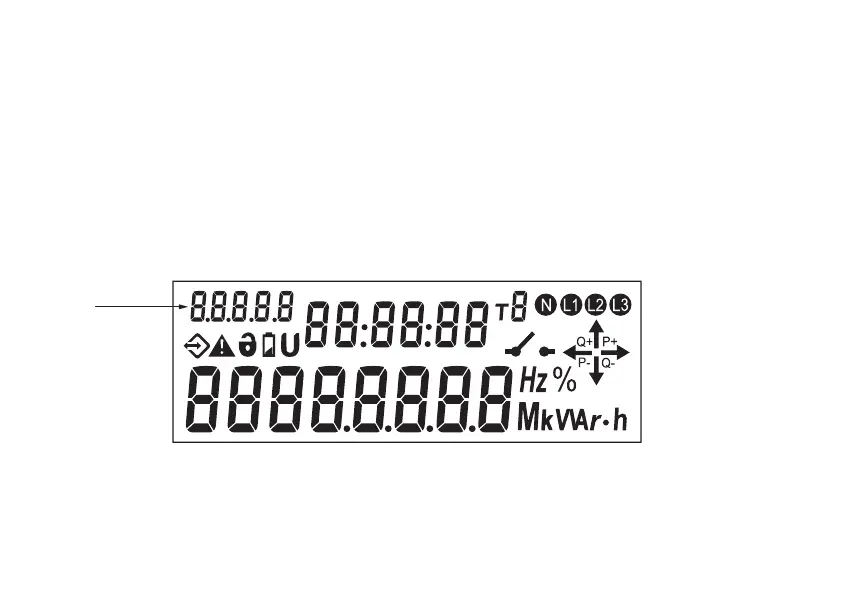

Figure 4.1 — Appearance of the CE208 S7 meter LCD indicator
