The measurement units of the displayed energy/power values are indicated respectively as «kW•h» «kVAr•h»,
«MW•h» «MVAr•h» or «MkW•h» «MkVAr•h», respectively, and characterize the type of indicated energy,
respectively: active and reactive.
4.2 Viewing total accumulated values (on an accrual basis)
The amount of active imported, active exported, reactive imported and exported energy on an accrual basis, by
tariffs and by phases is available for viewing on the LCD of the meter in the first group of parameters.
7
The meter keeps record according to tariffs, according to the specified tariffing parameters and the time of
the built-in clock. The type, tariff or phase of the accounted energy is displayed on the LCD of the meter with the
corresponding OBIS code designation (in the upper left corner of the LCD indicator (see Figure 4.1)) according to
the diagram given in Table 4.3.
OBIS code

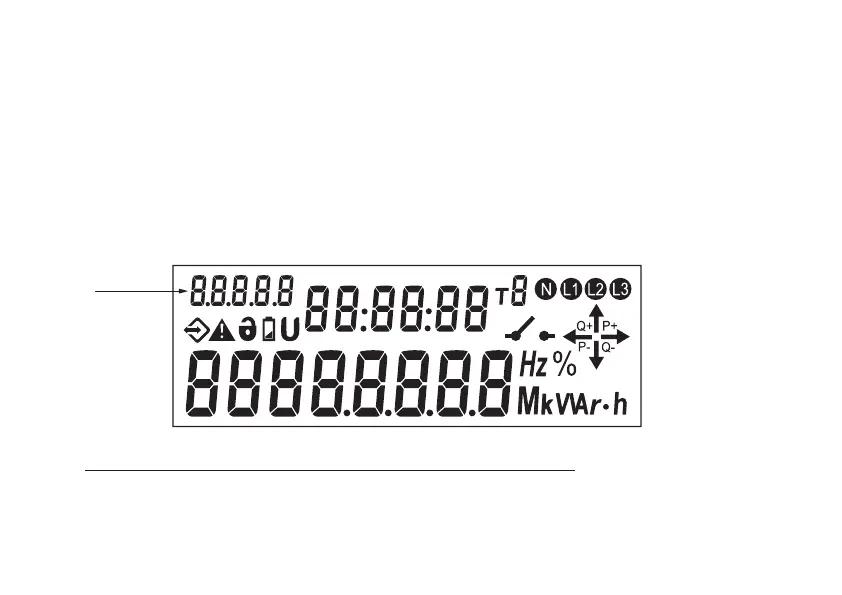

Figure 4.1 — Appearance of the CE308 meter LCD indicator
7
The information displayed by the meter on the LCD is organized in parameter groups. Detailed information on each group is
provided in the САНТ.411152.107-05.1 РП.
