44

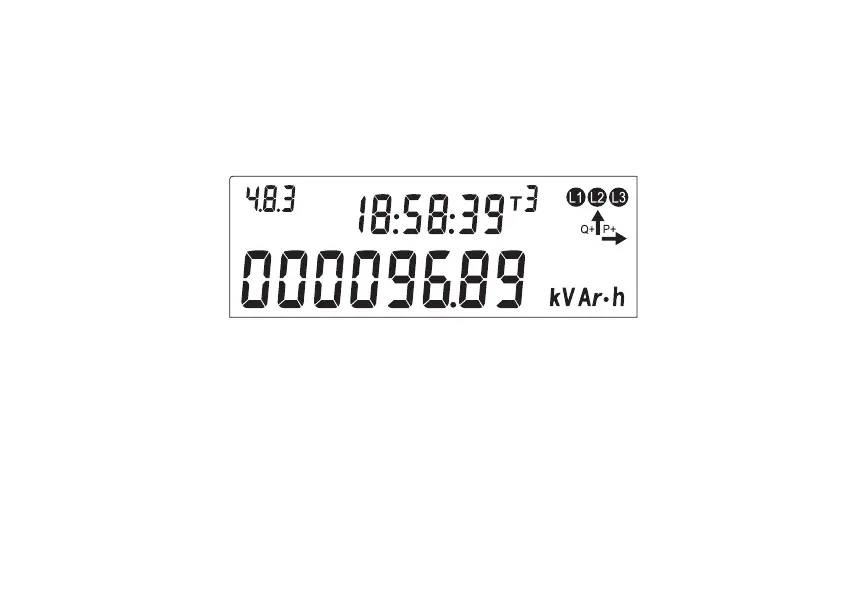

Figure 4.3 shows the value («00096.89 kVAr•h») of the reactive exported energy on an accrual basis for the fifth
tariff (OBIS code value is «4.8.3»). At the present moment:
• the active tariff is 3 («Т3»);
• the current time is «18h58m39s»;
• the reactive power direction is «Q+», active power direction is «P+»;
• all three phases are connected («L1, L2, L3»).
Figure 4.3
4.2.2 Viewing the total accumulations of a de-energized meter (when powered by the built-in lithium cell).
Press the «FRAME» button shortly. On the LCD screen, the first frame of the viewed «GROUP 1» group parameters
will be displayed, containing information on the amount of consumed active energy, cumulatively, by all tariffs (OBIS
code value is «1.8.0»). Subsequently pressing the «Frame» button shortly will send to the LCD information on the
metered energy type and tariff according to the scheme:
