By briefly pressing the «FRAME» button, select the type of metered energy:
«A+» → «A-» → «R+» → «R-»
By briefly pressing the «VIEW» button, select a tariff:
«Total (by tariffs 1-8)» → «Tariff 1» → «Tariff 2» → …
…→ «Tariff 10» → «Phase 1 (L1)» → «Phase 2 (L2)» → «Phase 3 (L3)»

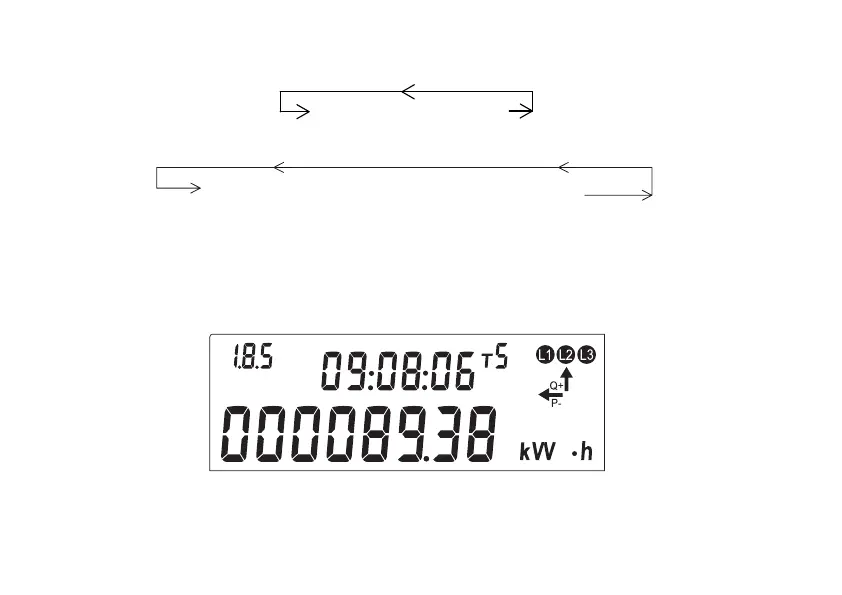

Figure 4.2 shows the value («00089.38 kW*h») of the active imported energy on an accrual basis for the fifth
tariff (the OBIS code value is «1.8.5»). At the present moment:
• the active tariff is 5 («Т5»);
• the current time is «09h08m06s»;
• the reactive power direction is «Q+», active power direction is «P-»;
• all three phases are connected («L1, L2, L3»).
Figure 4.2
