7Installation instructions for professionals
TECHNICAL SPECIFICATIONS OF THE UNIT
connection cable with plug
Width 600 mm
Depth 600 mm
Height 630 mm
Weight 65 kg
Duct connection (duct size) ø 160 mm
Range hood connection (duct size) CHC ø 100 mm
Fans supply 170 W, 1,35 A, extract 170 W, 1,35 A
Heat exchanger motor with thermal protection 5 W, 0,04 A
Power of electric post-heating coil in E-models 800 W / 230 V, 1~/50 Hz/ 3,48 A
Input power, E-model (post-heating coil) 1154 W / 230 V, 1~/50 Hz/ 6,2 A
Circuit breaker B10 A
Mains supply 230 V~, 50 Hz, 10 A

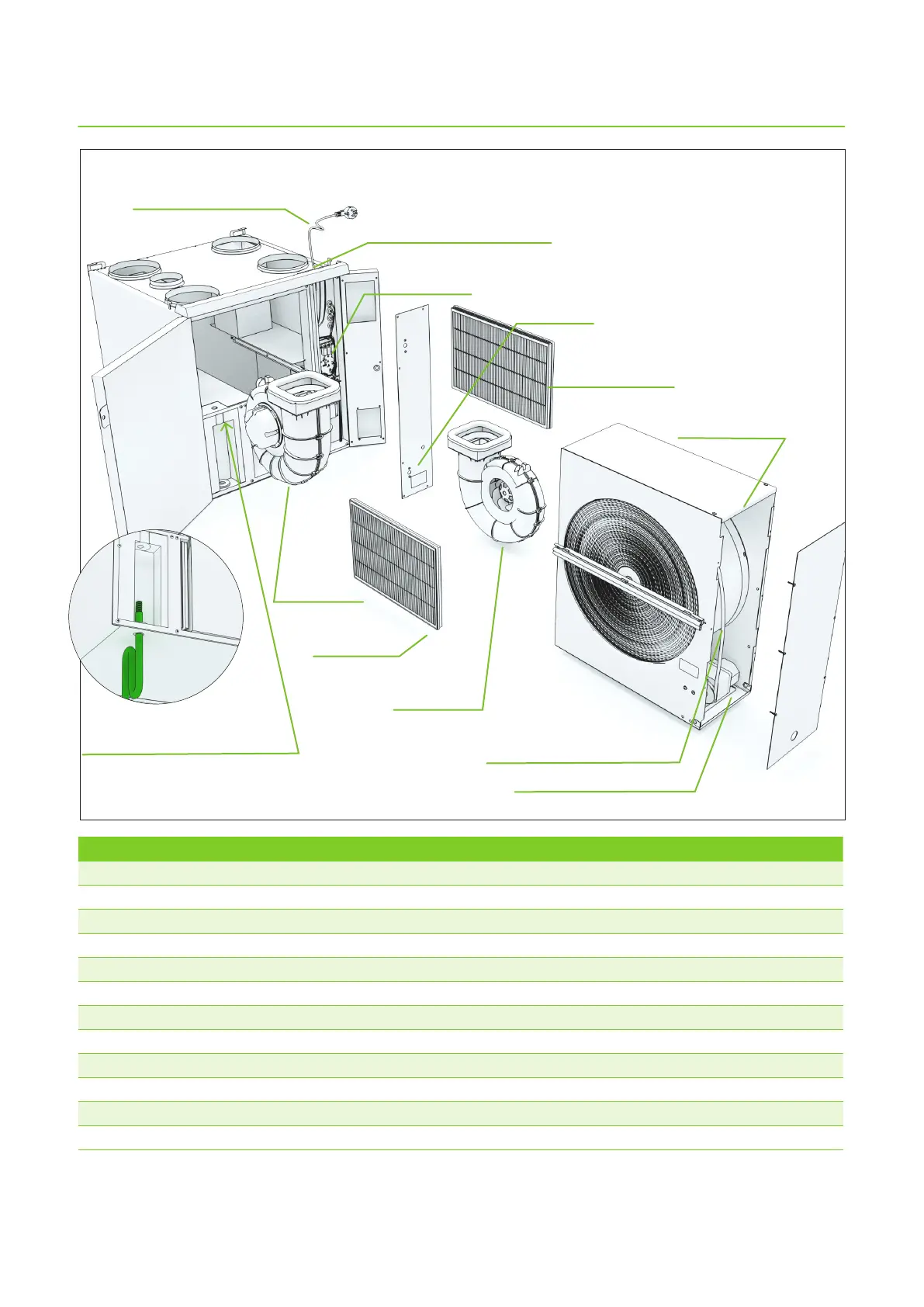

motherboard
type plate
inlets for external sensors
heat exchanger
heat exchanger drive belt
heat exchanger motor
supply fan
extract fan
extract lter
inlet lter
condensate connection
G1/4" internal thread
Right-handed CHC
