ENFORCER E-921CPQ User Manual

ENFORCER Voice Dialer
SECO-LARM U.S.A., Inc. 3
Back Connection Area (Cover Removed)
LINE TEL
Telephone Wall Jack
+
-
Buzzer (
–
) O/P
Buzzer (+) O/P
or
Telephone Extension
External Alarm/Siren
C
A
- 161T
DC Plug-to-Terminal
Block
Power Adapter
(Not Included)
SM-206Q*
E-964-D390Q*
NO/NC Trigger in 1
NO/NC Trigger in 2
N.C. Trigger in 3
Trigger ground
SM-200Q*
Note: For proper operation, the telephone extension
line and wall jack line must not be reversed.
Operating voltage 9~12 VDC
Current draw
Max. (at 12VDC)
Standby 5mA
Dialing 20mA
A
larm On 150mA
Relay On 50mA
Speaker On 250mA
Total 480mA
Phone system For single-line analog systems only
Emergency voice message length (user recorded) Up to 20s
Programmable emergency phone numbers 5
Maximum digits per telephone number 32
Backup battery type/life (not included) 9VDC/≈20h
A
larm sound level at 12" (30cm) ≥105dB
Trigger inputs
Triggers 1 and 2 NO/NC Trigger (auto-detected)
Trigger 3 N.C. Trigger
Trigger input timer ≥500ms
A
uxiliary output current (max) 125mA
Operating temperature 32°~104°F (0°~40°C)
Storage temperature -4°~140°F (-20°~60°C)
Weight 11.15-oz (316g)
Dimensions 6
11
/
16
"x4
11
/
16
"x1
1
/
2
" (170x119x38 mm)
1x Voice dialer unit 1x Telephone cable 1x Remote control instruction card
3x Plastic wall anchors 3x Wall mount screws 1x DC Plug-to-terminal block
1x Wall mounting template 1x User manual
Parts List:
Specifications:

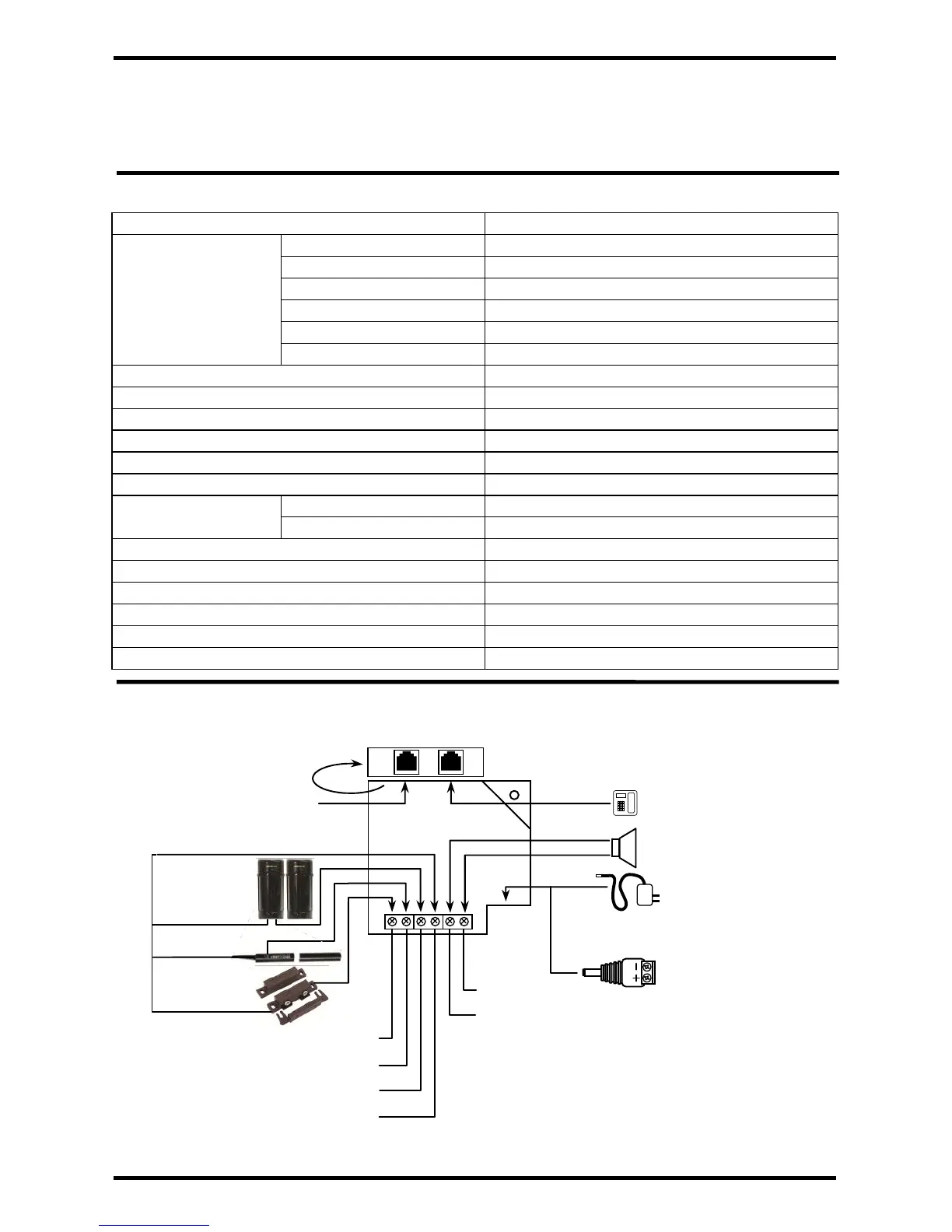

Wiring Diagram:
* E-964-D390Q Photobeam Detectors, SM-200Q Magnetic Sensors, and SM-206Q Concealed Magnetic Sensors shown as
examples only: For other sensors and products available from SECO-LARM, please visit our website at www.seco-larm.com.
