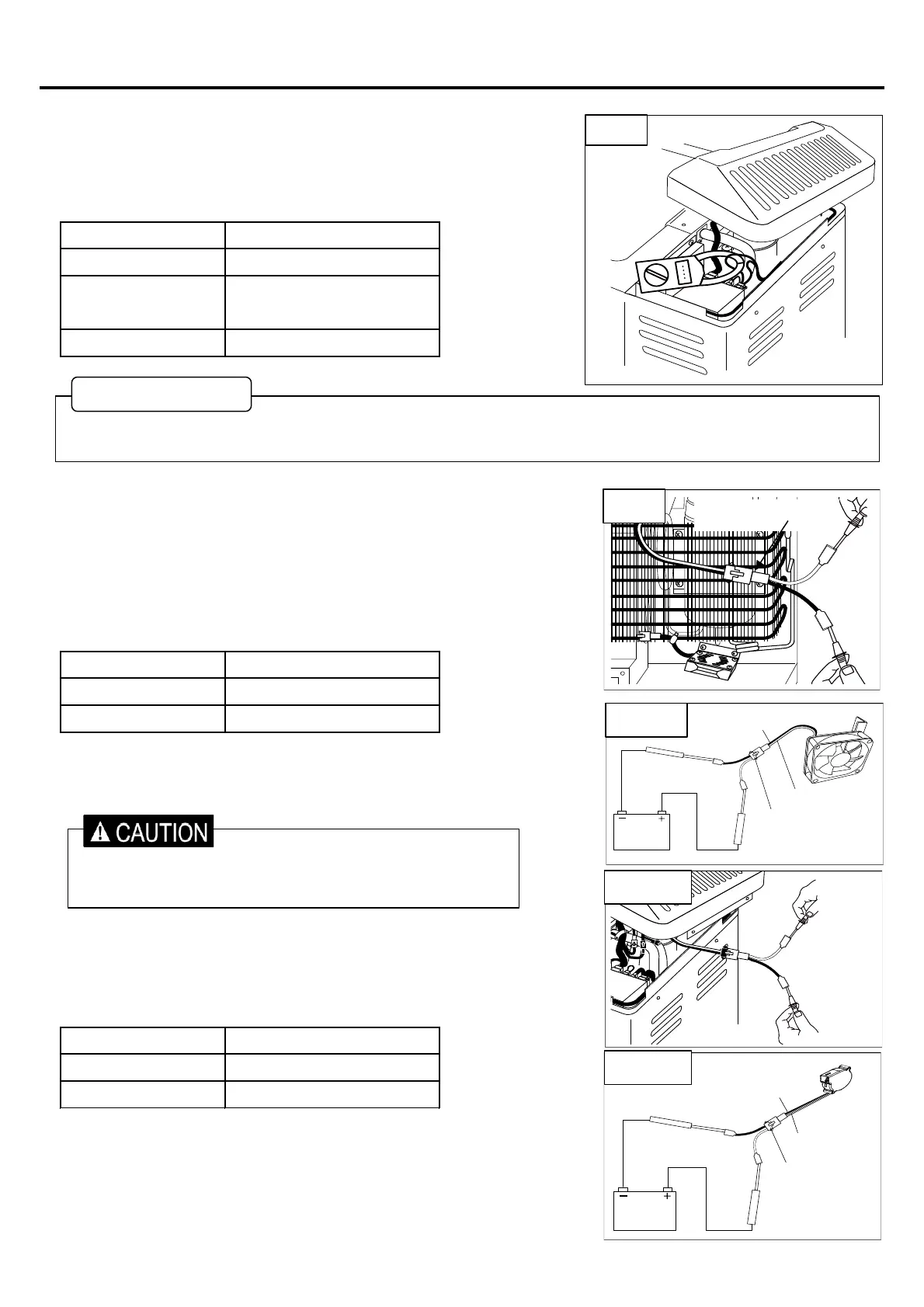

【Check 7】 Compressor Rated Current. （Fig.8)
◇Checking point
Test result Judge
2.1 - 2.3A Normal
Lower than 2.1A
Gas is leaking. ※
【Check 8】 Resistance of Fan motor.
<Compressor-side fan motor>
Check DC voltage from power supply to fan motor
Test result Judge
DC18V
Normal
０Ｖ Power supply failure
When directly checking the operation of the fan motor
<Inside fan motor> (combi type only)
DC voltage confirmation from the control ASSY to the internal fan motor
Test result Judge
DC12V
Normal
０Ｖ Control ASSY failure
When directly checking the operation of the fan motor
6. CHECK POINT ＆ CHECK METHOD
Current value measurement with clamp meter between
input cord terminals.
Compressor is locked, or
contaminated. ※
※If the refrigerator does not cool down, or if the coldness is weak
◇Remove the fan motor coupler (white) on the compressor
side and measure the DC voltage between the coupler
terminals on the power supply side (Fig. 9)
◇You can check by directly connecting 18V to 24V DC, but
follow the precautions (Fig. 10)
◇Remove the internal fan motor coupler (black) and measure the DC
voltage between the control ASSY side coupler terminals (Fig. 11)
◇You can check by directly connecting 12V DC, but follow
the precautions (Fig. 12)
・Prepare a support coupler and perform measurement.
・ Be careful not to mistake the polarity.
To measure the rated current of the compressor, please measure after 15 minutes or more after starting the
To Next Page
