Engel MT45F-U1D-P - How to Replace Power Supply; How to Replacement of Temperature Controller

【How to Replacement of Power Supply】
1. Remove the door.
(【How to Replace Cooling Unit】 STEP.1)
2. Remove the motor cover.
(【How to Replace Cooling Unit】 STEP.2)
3. Take out the power supply.
(【How to Replace Cooling Unit】 STEP.3)
4. Remove 4 screws of power supply. (Fig.18-①)
5. Remove ground cord of power supply. (Fig.18-②)
【How to Replacement of Temperature controller】
1. Remove the door.
(【How to Replace Cooling Unit】 STEP.1)
2. Remove the motor cover.
(【How to Replace Cooling Unit】 STEP.2)
3. Cut the fastener. (Fig.19-①)
5. Remove the dial (Fig.19-③)
6. Peel off the mark (Fig.19-④)
7. Remove 2 screws. (Fig.19-⑤)
7. REPLACING PARTS
20
4. Remove all couplers of temperature control
assembly. (Fig. 3-⑤) (5 couplers for combi type,
3 couplers for non-combi type)
①

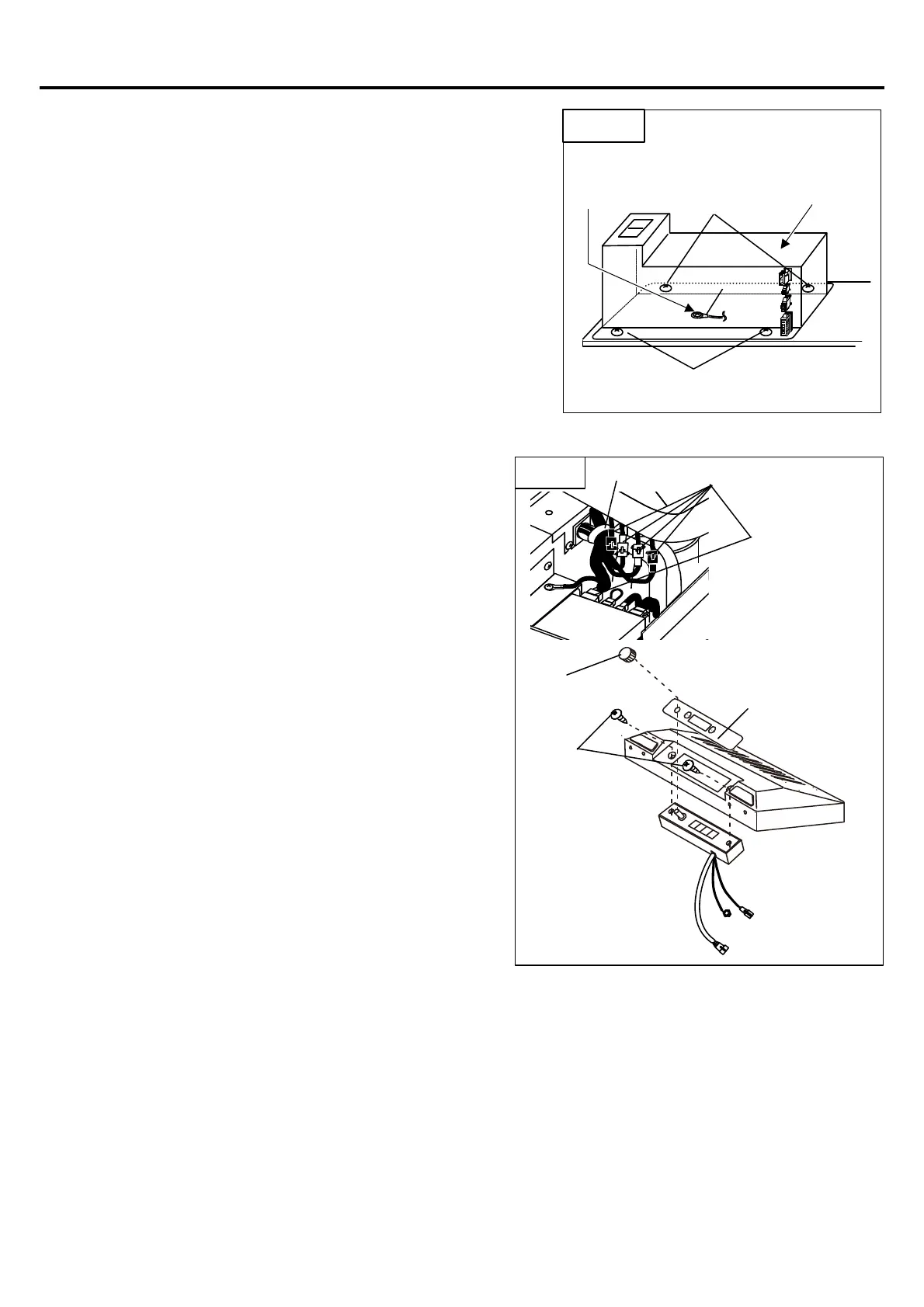

Fig.18
①
②
POWER SUPPLY
GROUND CORD
Fig.19
①
③
④
⑤
②
