18

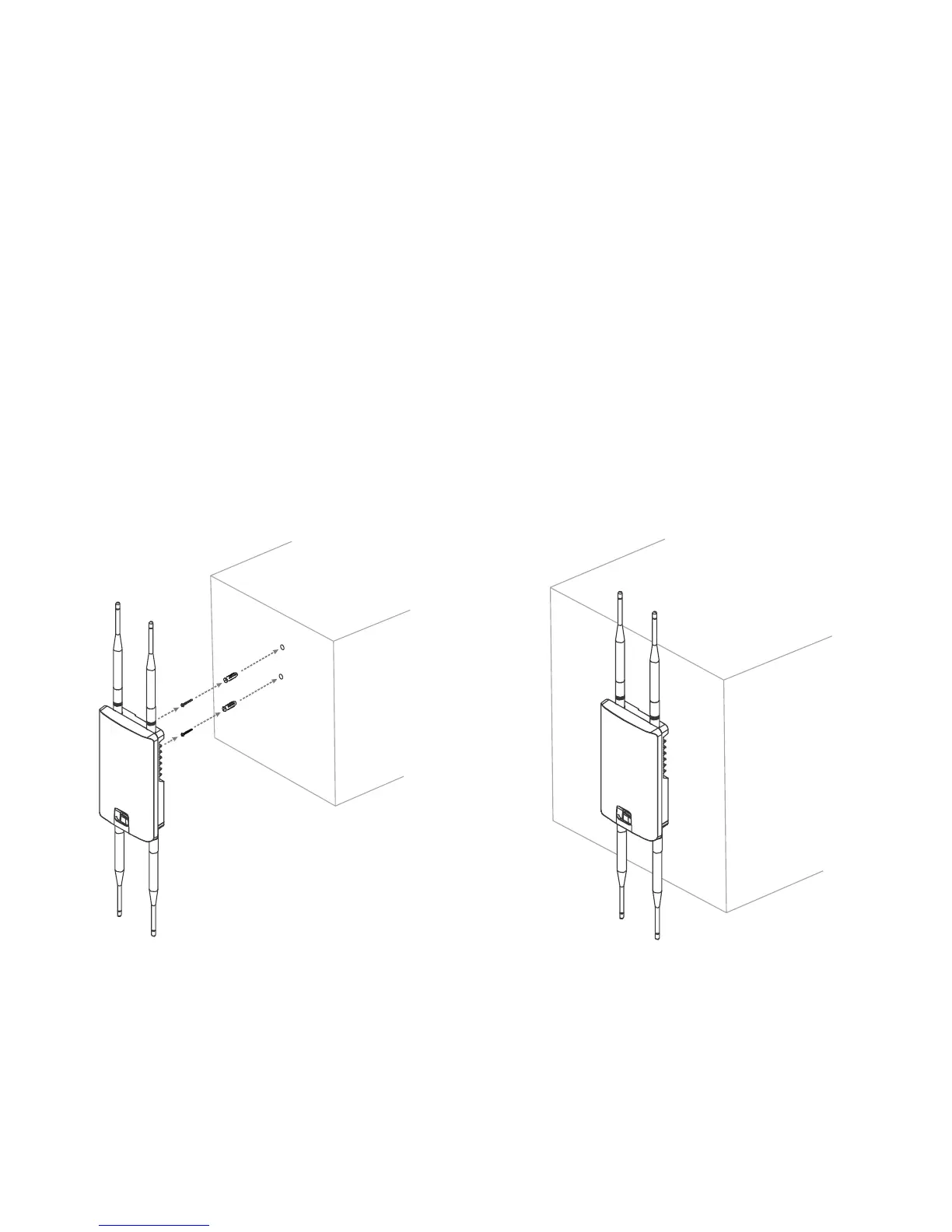

To attach the AP to a wall using wall mounting
kit.
1. Determine where the Access Point to be placed and
mark locations on a surface for the two mounting holes.
Useanappropriatedrillbittodrilltwo8.1mmdiagram
and 26mm depth holes in the markings and hammer the
bolts into the opening.
2. Screwtheanchorsuntotheholesuntiltheyareush
with the wall.
3. Screw the included screws into the anchors.
4. Place this Access Point against wall with the mounting
heads.
1
2
4
3
