WDS AP Mode
The AP also supports WDS AP mode. This operating mode allows wireless stations to connect with Access Point via using
WDStechnology.Inthismode,conguretheMACaddressesorSSIDsinbothAccessPointstoenlargethewirelessarea
by enabling WDS Link settings. WDS AP mode supports up to four (4) AP MAC addresses and four (4) SSIDs at the same
time.

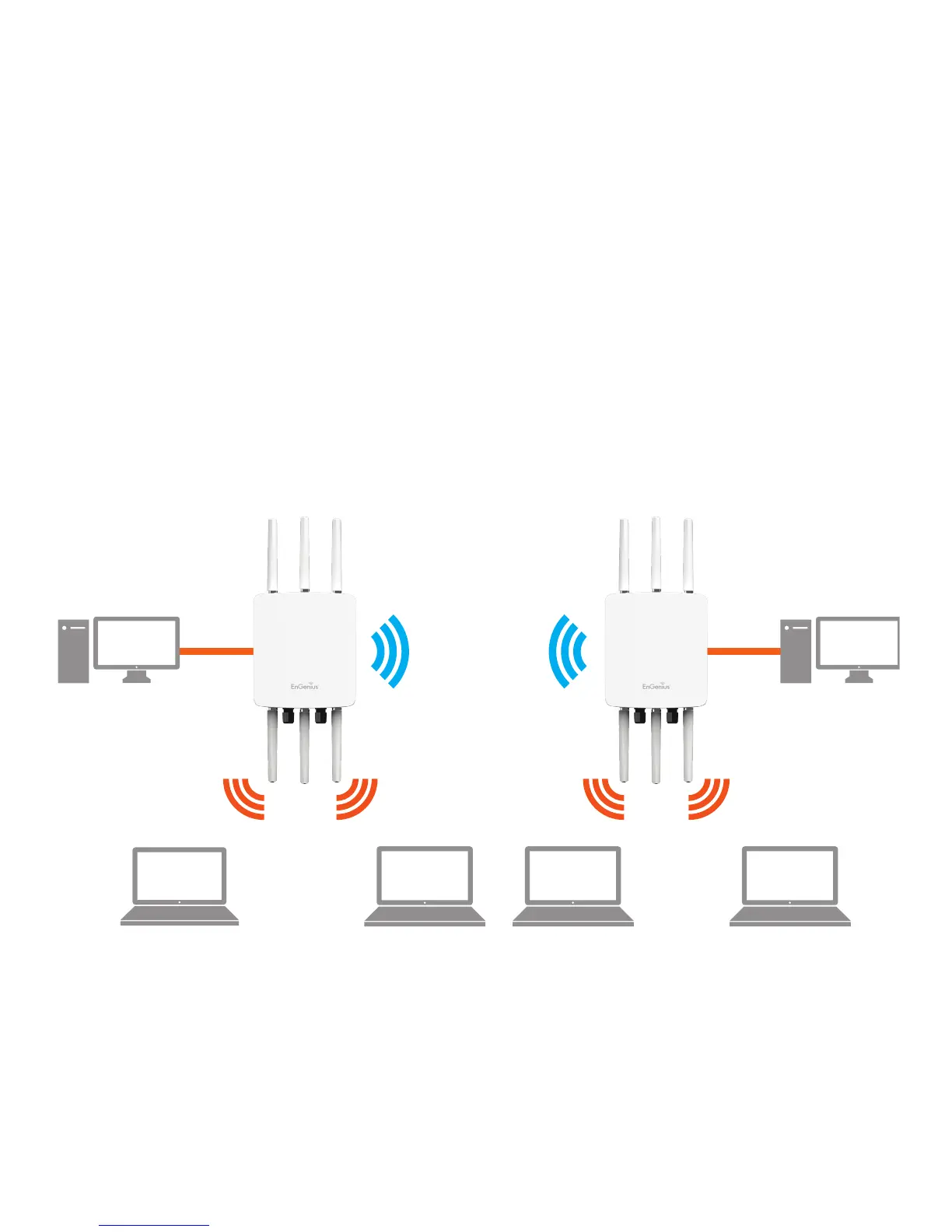

AP
WDS AP
AP
WDS AP
2.4 GHz 2.4 GHz
5 GHz 5 GHz
Client Client Client Client
Client
Computer
Client
Computer
