EnGenius ENS620EXT - Realtime Traffic and Connections

34

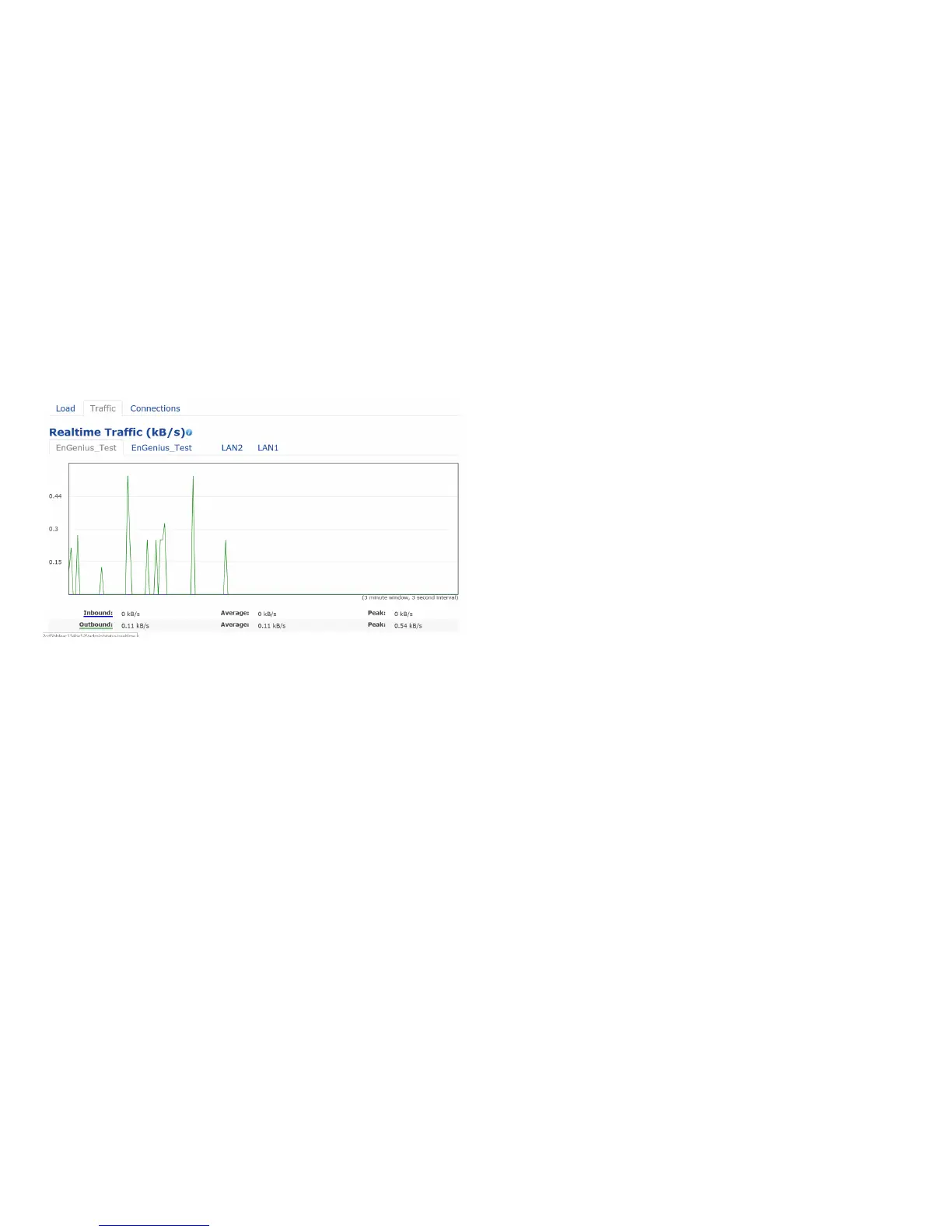

Trafc Loading: 2.4GHz and 5GHz and Ethernet port
inboundandoutboundtrafcbycurrent,averageand
peak time.
Realtime Connection (Pkts): Overview on current
activenetworkconnections. Itdisplays UDPand TCP
packetsinformationandotherconnectionstatus.UDP
connectionscurveisinblue;TCPconnectioncurveis
ingreen;otherscurveisinred.Belowofchartshows
connections source and destination.
