Getting familiar with the ADS 2000 cont.
BREATHING CIRCUIT PORTS - Connect the breathing circuit to these ports.
BATTERY LOW INDICATOR / SAFETY ALARM - The red led on the front panel of
the ADS 2000 is a warning indicator that the battery power is low, and that the unit
should be placed on charge immediately. When the unit is first powered up the led will
self test by flashing on and then should remain off.
The LED will also flash if the external sampling hose is disconnected.
GAS SAMPLING INPUT - To connect the Gas Sampling System, insert the Luer lock
connector to the Gas Sampling input and rotate it clockwise one half turn. The Luer
lock connector is located at the end of the 1/8” clear tube. Locate the other Luer lock
connector at the other end of the 1/8” clear tube. Connect it to the Gas Sampling elbow
on the Breathing Circuit.
Note: It is imperative that the Gas Sampling Hose stay connected during use.

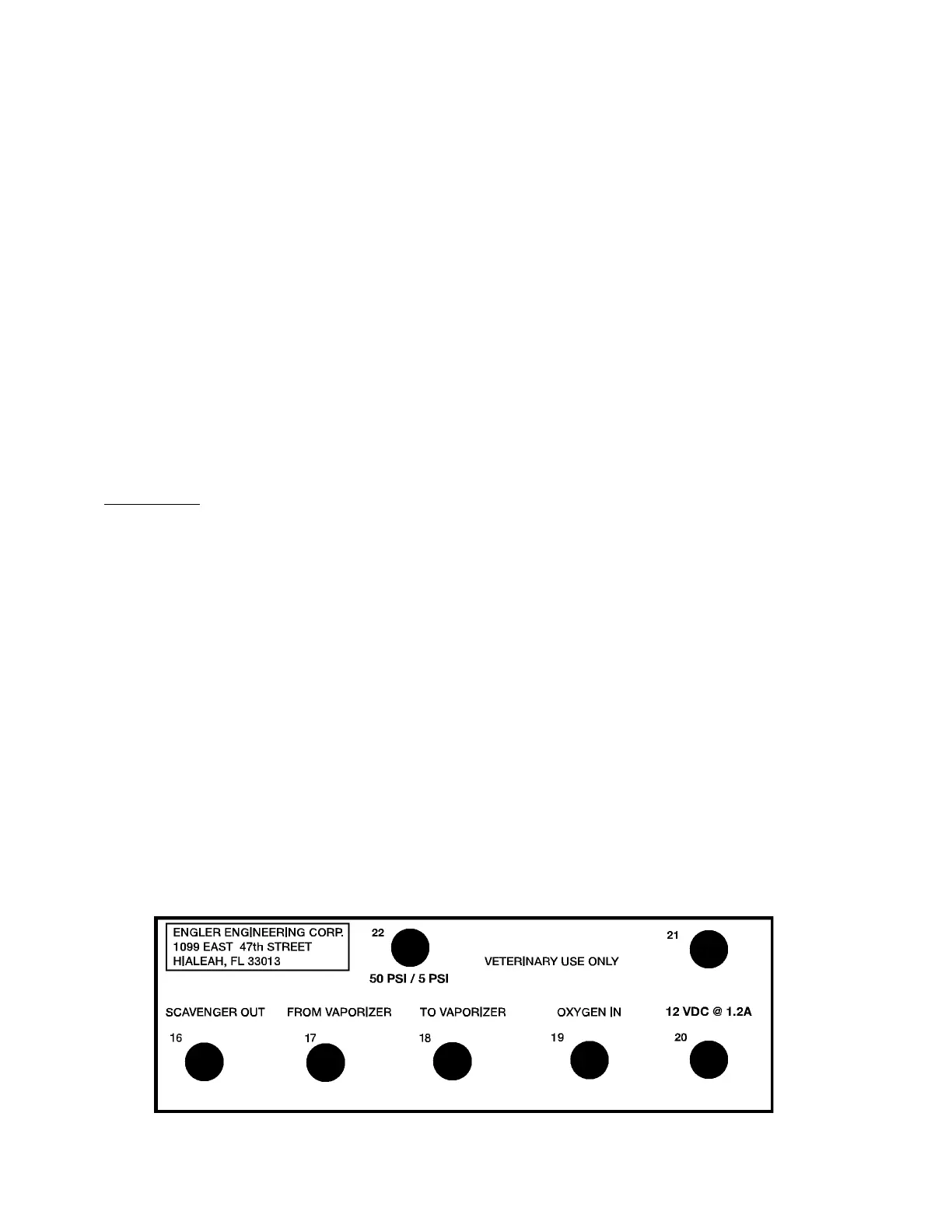

Rear View:
SCAVENGER OUT - Connect one end of the blue "Scavenger" tubing to this port and
connect the other end to a scavenging filter canister or other scavenging device, either
active or passive.
FROM VAPORIZER - Connect one end of the "From Vaporizer" hose to this
port and connect the other end to the outlet port of your precision vaporizer.
TO VAPORIZER - Connect one end of the "To Vaporizer" hose to this port and
connect the other end to the inlet port or your precision vaporizer.
OXYGEN IN - Connect one end of the green "Oxygen" hose to this port and connect
the other end to an oxygen source that is set to a pressure of 50 PSI (pounds per
square inch).
POWER INLET - Connect your power cord to this port.
ALARM - This is the alarm speaker.
50 PSI / 5 PSI TOGGLE - This is the manual control to alternate between the 50 PSI
(normal) operating mode and the 5 PSI, (lab) mode.
ADS 2000 Engler Engineering Corporation 9
