CCS 3100 DESCRIPTION
CCS 3100 Compressor Control System is designed for screw and reciprocating compressors. CCS 3100 is a
microprocessor-controlled device that performs the processes of compressor start and stop, pressure regulation,
temperature control, fault monitoring and protection against faults.
1. SYSTEM DESCRIPTION
CCS 3100 Panel consists of keypad, led status indicators and 2x16 backlit LCD.
With the help of the buttons, you can access the fault logs, service times, pressure, temperature and voltages
measured by the device, input and output states, counters related to the compressor through the menu, and also
adjust the parameters of the device. There is a 3-color led indicator on the device that shows its current status.

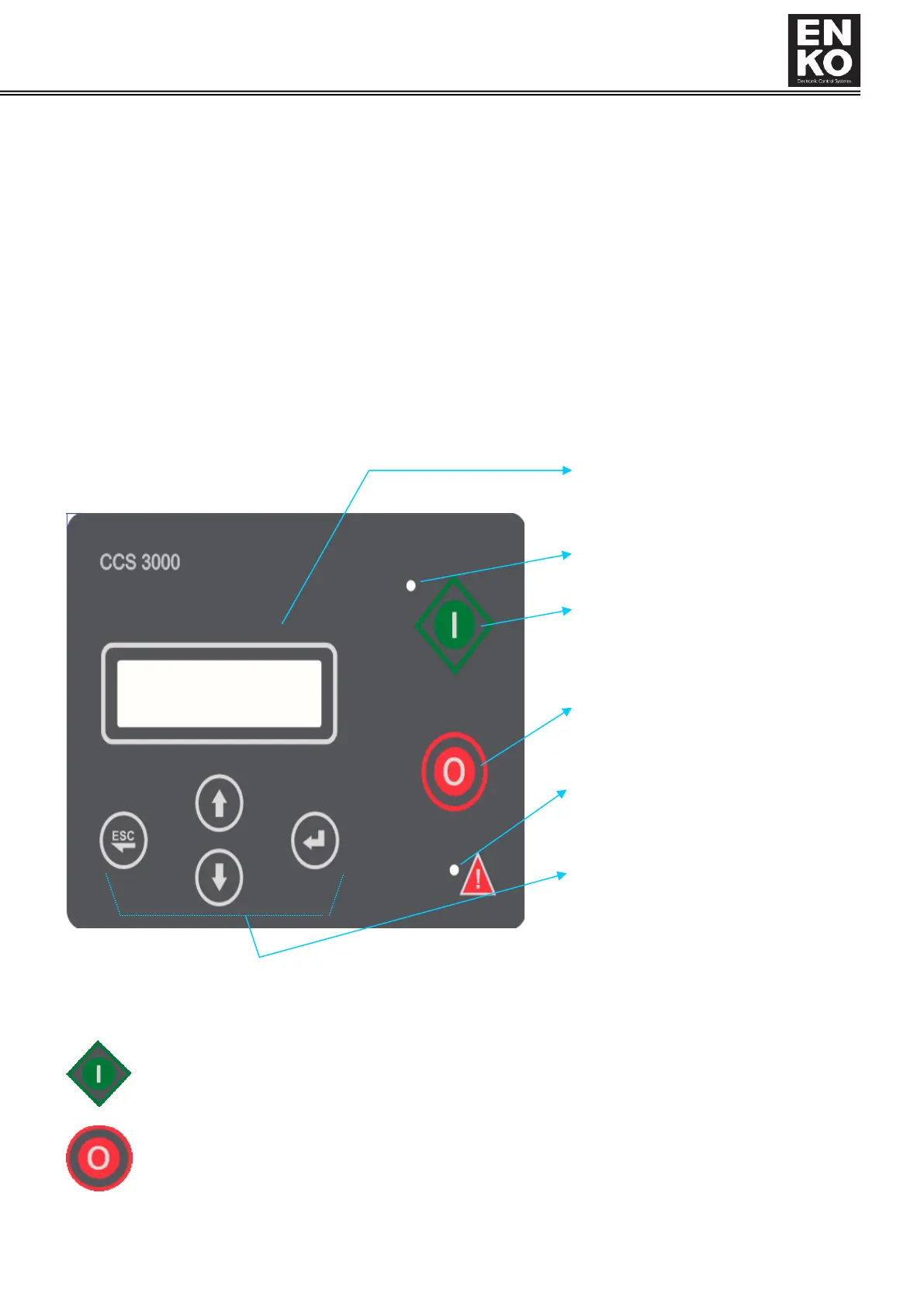

1.1 Front-End Description
1.2 Button Description
Start Button: Starts the compressor.
Stop Button: Stops the compressor.
