Software Release: [App: 02.09.10051.00; Config: 2.9.20024; Built in PowerVision Configuration Studio Version: 2.9.23042;
BTL: 02.09.10015.00]
Section 40 22 00-02-0939
2019-06-13
Additional Screens

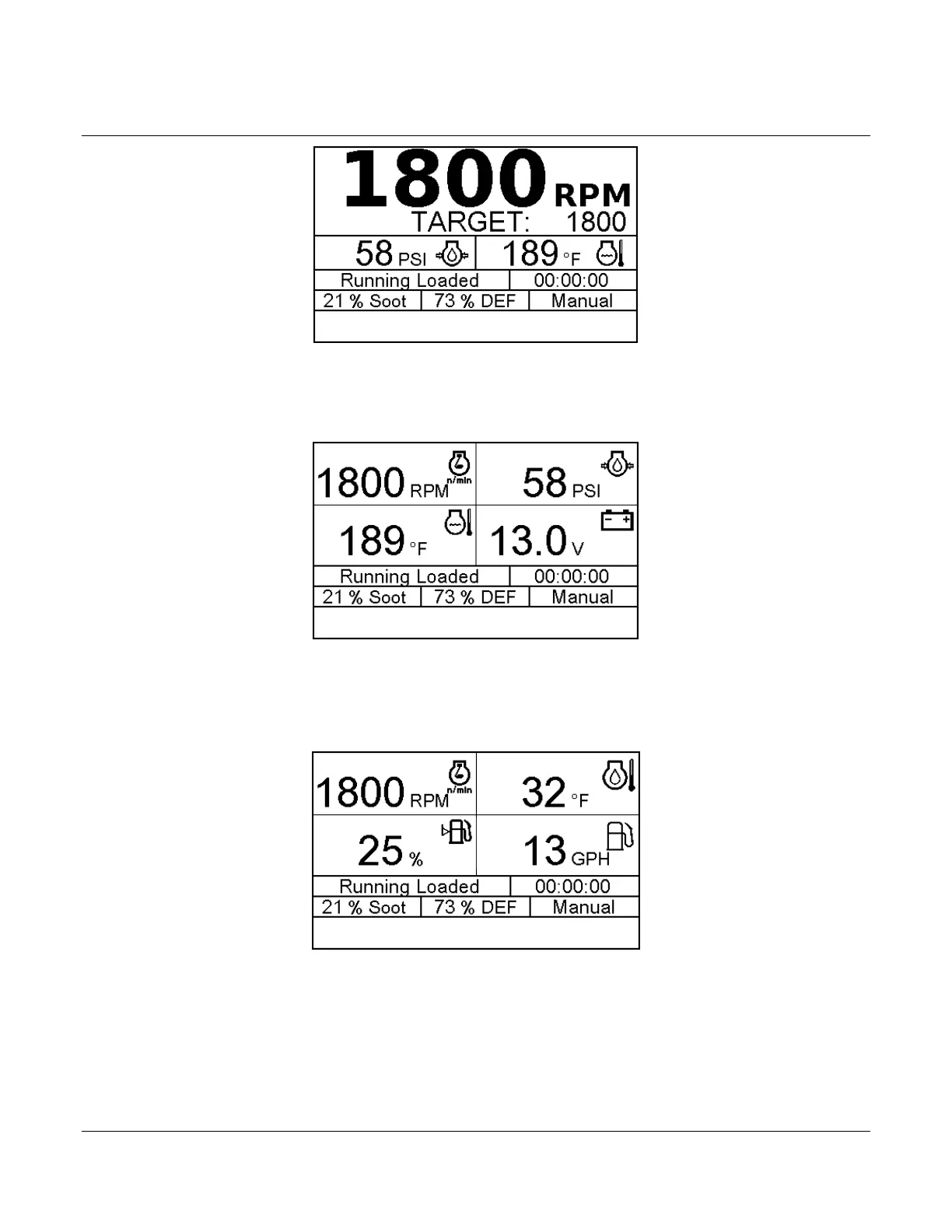

Figure 9: Main Screen
This is the main screen, and it displays actual and target RPM, Mode of Operation, Timer progress, % Soot
Level, % DEF Level and current State, along with icons and warnings.
Figure 10: First 4-Up Screen
This is the first 4 up screen, displaying engine RPM, oil pressure, engine temperature and battery voltage. If
alternate parameters are desired, these may be changed using the free MPC-10 / TEC-10 software
configuration tool.
Figure 11: Second 4-Up Screen
This is the second 4 up screen, displaying engine RPM, engine temperature, fuel level and GPH. If
alternate parameters are desired, these may be changed using the free MPC-10 / TEC-10 software
configuration tool.
