9. Wall Mount the Envoy (Optional)
NOTE: Before mounting the Envoy, it is best to perform a Communications check, as
described on page 21, to find the best location for your Envoy.
After you have positioned your Envoy for optimal communications and after it has detected all devices,
you can mount the Envoy on a wall. To do this:

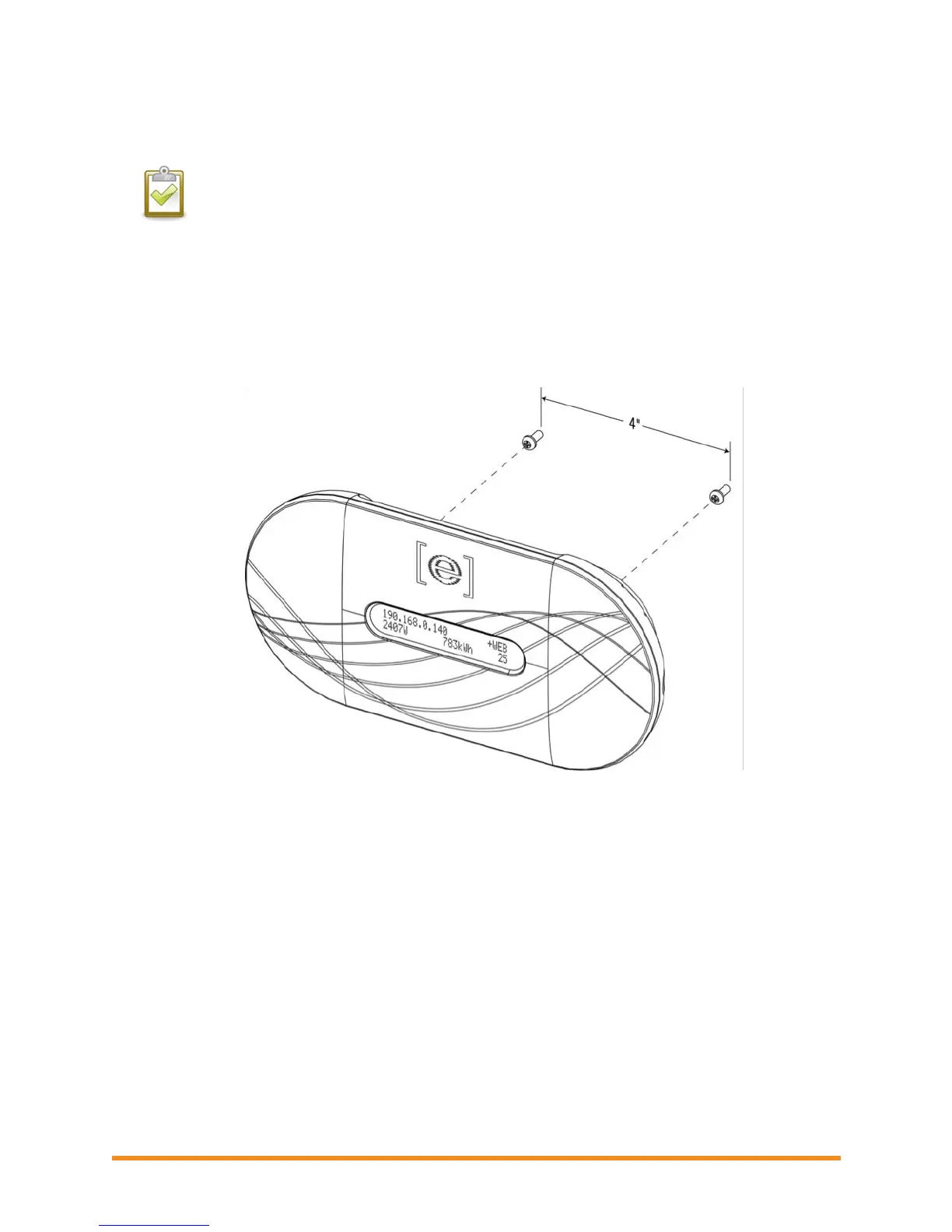

a. Use two drywall screws or wall anchors (not included) to affix the Envoy to the wall, mounted at
the dimensions shown. You will need two #8 screws (4.17 mm or 0.16 in. diameter); maximum
screw head diameter is 8.9mm (0.35 in.).
b. Slide the Envoy onto the mounting screws, aligning the Envoy screw holes with the screws as
shown.
