enphase IQ Combiner 5

Phillips screw #2
Risk of equipment damage. Always unplug the USB cable from
the IQGatewayUSB port prior to removing the dead front.
Risk of electric shock. To maintain the warranty, do not modify the
dead-front other than to remove or replace ller plates, as needed.
Section A - Mounting the product
Step 3:

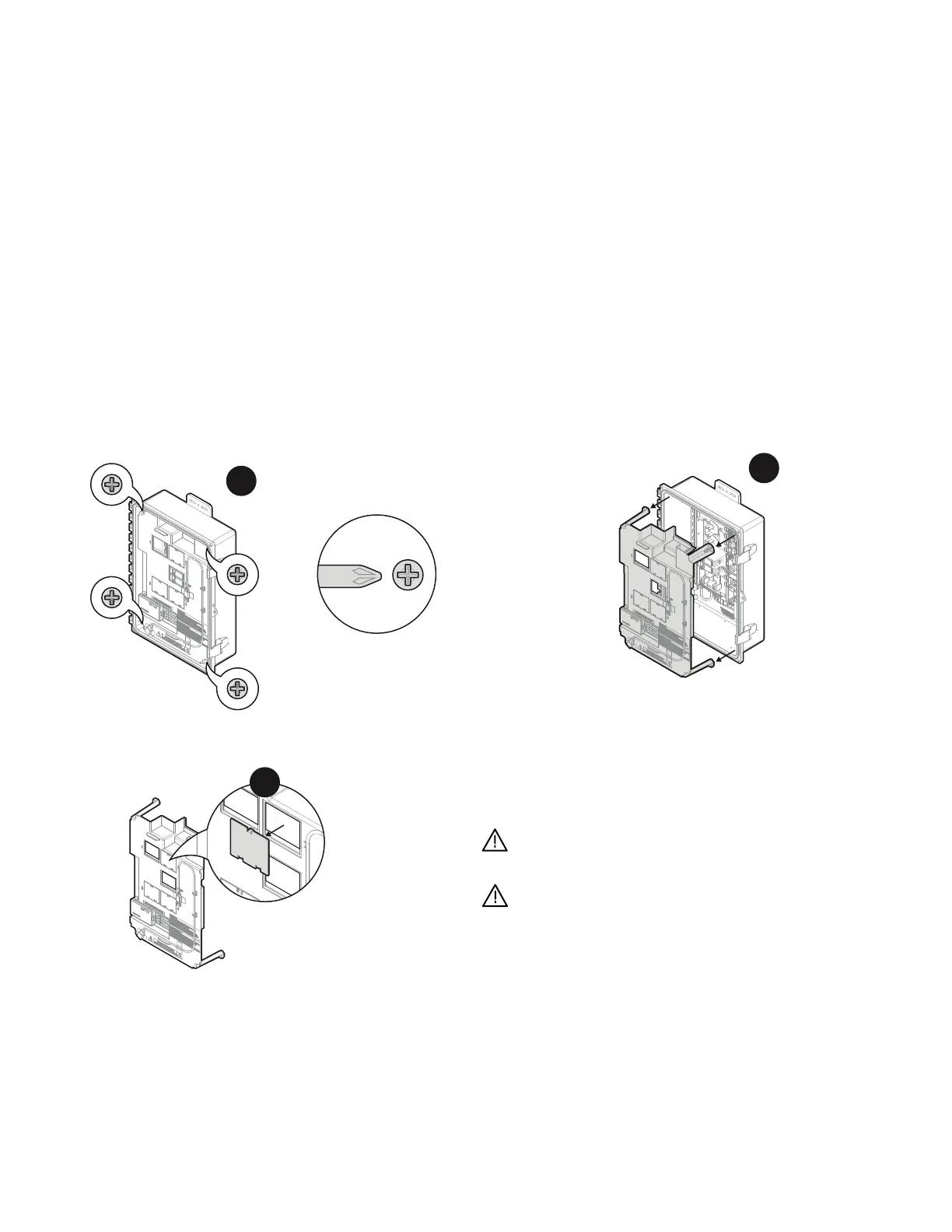

Removing the dead front
• Unplug the Mobile Connect (for IQCombiner 5C) and remove
the plastic dead front with the integrated Mobile Connect on
the dead front. It is not necessary to completely remove the
screws of the dead front.
• Remove the ller plate on the dead front for each breaker
position to be used. To remove the ller plate, press the single
latch inward while gently pushing the ller plate out.
3
1
1
2
IQ Combiner 5/5C Quick Install Guide 16
